What Industries Benefit Most from Adiabatic Calorimetry Testing and Why?
Adiabatic calorimetry testing has emerged as a cornerstone in various industries, particularly in chemical processes, safety assessments, and thermodynamic research. Among the array of instruments available, the Adiabatic Calorimetry(TAC-500AE) by Zeal Instruments stands out for its precision, versatility, and reliability. Designed for the rigorous demands of modern laboratories, the Adiabatic Calorimetry(TAC-500AE) offers unparalleled capabilities in analyzing chemical reactions, assessing thermal hazards, and optimizing processes across diverse fields such as pharmaceuticals, energetic materials, and organic chemistry.

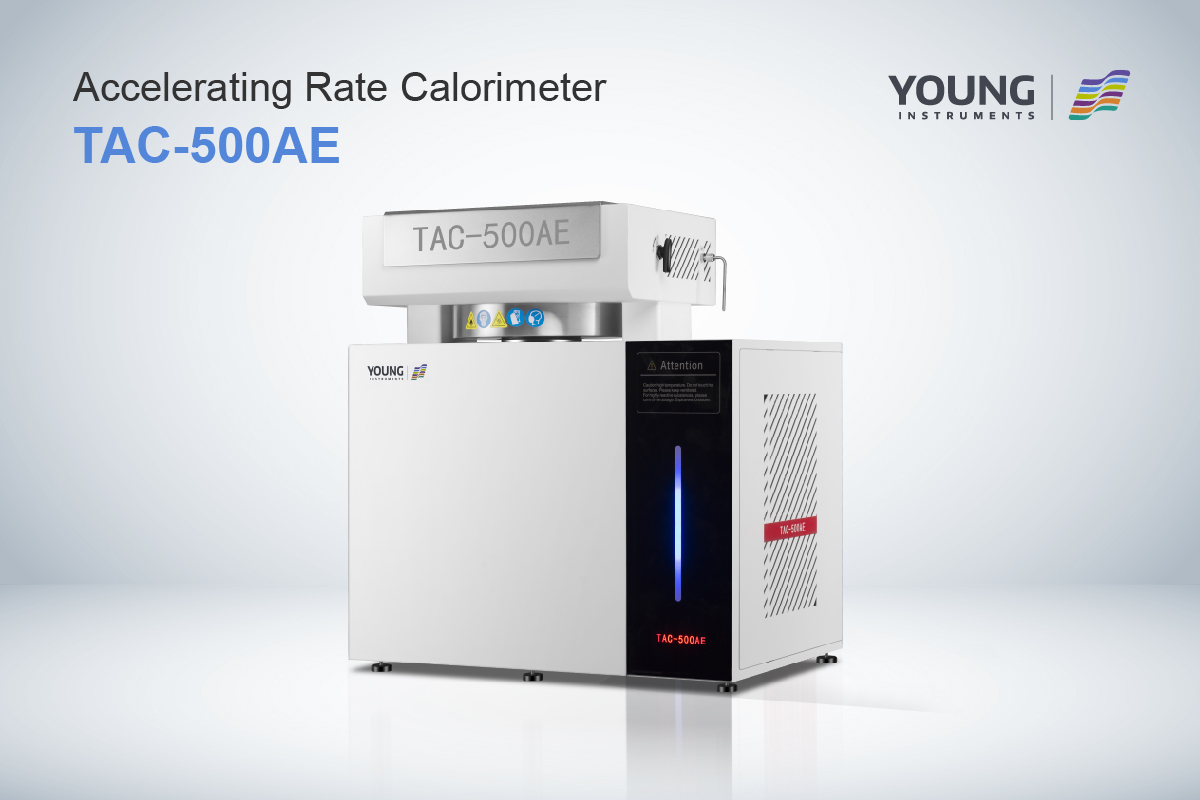

Introduction to Adiabatic Calorimetry (TAC-500AE)
Adiabatic Calorimetry (TAC-500AE) is an instrument used to evaluate chemical process and hazardous chemical stability, simulating the most severe scenarios of self-accelerating reactions (such as uncontrolled situations). It can be employed for thermal analysis of solid or liquid chemicals, as well as for assessing the potential hazards of (mixed) gas, gas/liquid, liquid/liquid, gas/solid, and liquid/solid systems, including continuous liquid/gas feed reaction systems. It provides more accurate and comprehensive thermodynamic and kinetic data, facilitating thermal safety analysis of organic chemicals, petrochemical products, pharmaceuticals, soil chemicals, fine organic chemicals, batteries, polymers, and high-energy explosive materials.
Technical Specifications: Unlocking Insights with Adiabatic Calorimetry Testing
1. Working Environment
The TAC-500AE operates within a temperature range of 5°C to 40°C, with relative humidity maintained below 85%. This wide operating temperature range ensures versatility and reliability in various laboratory settings.
2. Temperature Range
With an impressive temperature range spanning from room temperature (RT) to 500°C, the TAC-500AE enables the analysis of thermal reactions across a broad spectrum of conditions, from ambient to elevated temperatures.
3. Temperature Detection Threshold
The instrument boasts a temperature detection threshold ranging from 0.005°C/min to 0.02°C/min, ensuring the detection of even subtle changes in temperature during a reaction.
4. Temperature Tracking Rate
Featuring a temperature tracking rate ranging from 0.005°C/min to 40°C/min, the TAC-500AE offers the flexibility to monitor reactions at varying speeds, accommodating a wide range of experimental requirements.
5. Temperature Resolution
With a temperature resolution of 0.001°C, the TAC-500AE delivers precise temperature measurements, enabling researchers to capture nuanced thermal behavior with exceptional accuracy.
6. Pressure Detection Range and Resolution
The instrument offers a pressure detection range from 0 to 20000 kPa, with a resolution of 1 kPa, allowing for thorough monitoring of pressure changes throughout a reaction.
7. Sample Test Amount and Test-cell Material
Capable of accommodating sample volumes of up to 8 ml, the TAC-500AE supports the analysis of a diverse range of chemical compounds. The test cell is constructed from high-quality materials such as stainless steel, titanium alloy, and Hastelloy (optional), ensuring compatibility with various sample types and minimizing the risk of contamination.
8. Phi and Interface
The TAC-500AE features Phi values of ≤1.35, indicative of its robust safety measures and adherence to industry standards. It offers convenient connectivity options, including USB or RJ45 interfaces, facilitating seamless data transfer and analysis.
9. Power Supply and Dimensions
Powered by AC220V/50Hz, the TAC-500AE consumes ≤3000W of power, making it energy-efficient and cost-effective. With dimensions of 620mm x 470mm x 670mm and weighing approximately 78kg, it offers a compact footprint without compromising on performance or functionality.
The Versatility of Adiabatic Calorimetry(TAC-500AE)
1. Simulating Potential Thermal Runaway Behavior
The TAC-500AE Adiabatic Acceleration Calorimeter determines the thermal behavior of samples under adiabatic conditions by maintaining the environment at the same temperature as the reaction system. It can simulate potential thermal runaway reactions.
2. Adiabatic Kinetic Analysis
The TAC-500AE adiabatic acceleration calorimeter integrates various reaction kinetic analysis methods. In cases of uncertain reaction mechanism models, to avoid errors caused by mismatched preset models, the method of equal conversion rate can be selected for parameter fitting. For reactions with clear nth-order reaction kinetic equations, the method of rate constants can be directly applied for fitting.
3. Reaction Risk Assessment
TAC-500AE adiabatic acceleration calorimeter enables real-time tracking of reaction temperature and rapid tracking of adiabatic temperature rise, ensuring experimental safety while accurately measuring heat. The data analysis software calculates secondary decomposition reaction-related thermal hazard parameters and can generate reaction risk assessment reports.
Test Parameters and Their Significance
1. Process and Safety Assessment:
Adiabatic calorimetry serves as a vital tool in evaluating the risks associated with fine chemical reactions. It provides essential parameters such as adiabatic temperature rise (ΔTad), which helps gauge the severity of uncontrolled reactions; the time to reach maximum reaction rate (TMRad), aiding in assessing the likelihood of uncontrolled reactions occurring; and the temperature corresponding to the maximum reaction rate at 24 hours (TD24), used to determine the hazard level of reaction processes. Additionally, it enables the study of decomposition reaction kinetics and the determination of the self-accelerating decomposition temperature (SADT), crucial for establishing proper storage conditions for reactants.
2. Thermodynamic Calculations:
Thermodynamics forms the cornerstone of chemical engineering, and the Adiabatic Calorimetry(TAC-500AE) facilitates precise thermodynamic calculations by providing accurate measurements of enthalpy changes and heat capacities. These data not only enhance understanding of reaction energetics but also play a pivotal role as inputs for thermodynamic modeling and simulation. This capability supports the design and optimization of intricate chemical processes.
3. Runaway Reactions:
The occurrence of runaway reactions poses significant risks in industrial settings, potentially leading to catastrophic consequences. Through real-time monitoring and analysis, the Adiabatic Calorimetry(TAC-500AE) enables early detection of runaway reactions by identifying abnormal heat release rates or temperature excursions. This proactive approach empowers operators to promptly implement necessary interventions, thereby preventing escalation and ensuring operational safety.
Applicable Fields and Industries
1. Risk Assessment of Reactions:
From small-scale laboratory reactions to large-scale industrial processes, the Adiabatic Calorimetry(TAC-500AE) provides invaluable support in conducting comprehensive risk assessments. Quantifying the potential hazards associated with chemical reactions, it helps stakeholders make informed decisions regarding process design, scale-up, and implementation of safety protocols, thereby minimizing risks to personnel, facilities, and the environment.
2. Pharmaceuticals and Fine Chemicals:
In the pharmaceutical and fine chemical industries, where precise control over reaction conditions is paramount, the Adiabatic Calorimetry(TAC-500AE) plays a critical role in ensuring purity, and safety. By facilitating thorough characterization of reaction kinetics and thermodynamic properties, it accelerates process development timelines and enhances overall efficiency, supporting the timely delivery of high-quality pharmaceuticals and specialty chemicals.
3. Food and Organic Synthesis:
From food processing to the synthesis of organic compounds, the Adiabatic Calorimetry(TAC-500AE) offers valuable insights into reaction dynamics and thermal behavior. Whether optimizing cooking processes, studying lipid oxidation kinetics, or exploring novel synthetic routes, its precise measurements enable researchers to fine-tune parameters and achieve desired outcomes efficiently and reliably.
4. MTSR Process Safety:
The Management of Change (MOC) and Process Safety Management (PSM) are integral components of modern chemical manufacturing, and the Adiabatic Calorimetry(TAC-500AE) plays a crucial role in supporting these processes. Providing accurate data on reaction kinetics and thermal hazards, aids in the identification of potential process deviations, allowing for proactive interventions to maintain safe operating conditions and prevent incidents.
Exploring the Advanced Features of Zeal Instruments’ Adiabatic Calorimetry Testing
Adiabatic calorimetry testing represents a cornerstone in modern chemical research and process optimization. Among the leading manufacturers in this field, Zeal Instruments stands out for its commitment to innovation and precision. Let’s delve into the advanced features of Zeal Instruments’ adiabatic calorimeter, showcasing its capabilities in enhancing efficiency, safety, and reliability across diverse applications.
1. Versatile Operating Modes for Enhanced Flexibility
Zeal Instruments’ adiabatic calorimeter supports multiple operating modes, catering to a wide range of experimental requirements. Whether it’s the Heating-Waiting-Search (HWS) mode for precise control over reaction kinetics, the isothermal mode for studying equilibrium processes, or the constant rate scanning mode for dynamic analyses, the instrument offers unparalleled flexibility to researchers and engineers alike.
2. Seamless Data Analysis with Professional Software
Equipped with advanced data analysis software, Zeal Instruments’ adiabatic calorimeter streamlines the process of parameter calculation and result interpretation. From determining key metrics such as heat release onset temperature and adiabatic temperature rise to analyzing complex kinetics parameters like activation energy and pre-exponential factor, the software simplifies data interpretation, saving time and effort for researchers.
3. Comprehensive Safety Assessment with Integrated Guidelines
Safety is paramount in any laboratory setting, and Zeal Instruments’ adiabatic calorimeter takes this aspect seriously. By integrating guidelines from emergency management departments for safety risk assessment of fine chemical reactions, the instrument provides a comprehensive evaluation of reaction hazards. This one-stop assessment capability ensures that researchers can conduct experiments with confidence, knowing that safety protocols are adhered to rigorously.
4. Efficient Cooling for Rapid Experiment Turnaround
Zeal Instruments’ adiabatic calorimeter offers a unique feature of connecting to an inert gas for rapid cooling of the furnace post-experiment. This capability not only accelerates experiment turnaround times but also ensures that subsequent experiments can be initiated promptly, maximizing laboratory efficiency without compromising safety.
5. Intelligent Monitoring and Alarm Systems
To further enhance safety and prevent potential hazards, Zeal Instruments’ adiabatic calorimeter features experimental status indicators and alarms for overpressure and overtemperature conditions. These real-time monitoring systems provide researchers with immediate feedback on the experimental environment, enabling timely interventions to mitigate risks and ensure personnel safety.
6. User-Friendly Design for Enhanced Accessibility
Designed with user convenience in mind, Zeal Instruments’ adiabatic calorimeter boasts an automatic lifting function of the furnace lid for both safety and ease of operation. Additionally, its professional industrial design exudes simplicity and elegance, with a user-friendly human-machine interface that is intuitive and easy to navigate. This design ethos ensures that researchers can focus on their experiments without being hindered by technical complexities.
7. Advanced Thermodynamic Calculation Methods
The data analysis software accompanying Zeal Instruments’ adiabatic calorimeter includes state-of-the-art thermodynamic calculation methods, offering significant advantages in the calculation of thermokinetics. Whether it’s analyzing the thermal decomposition of mixtures or predicting thermal hazards, these differential conversion rate methods enable researchers to gain deeper insights into reaction kinetics and make informed decisions with confidence.
Conclusion Adiabatic Calorimetry Testing
In conclusion, the Adiabatic Calorimetry(TAC-500AE) by Zeal Instruments represents a pinnacle of technological innovation in the field of chemical process analysis and safety assessment. Its versatility, precision, and reliability make it an indispensable tool for researchers, engineers, and safety professionals across a myriad of industries, from pharmaceuticals and fine chemicals to food processing and beyond. With its ability to provide detailed insights into reaction kinetics, thermal behavior, and process safety, the Adiabatic Calorimetry(TAC-500AE) empowers organizations to optimize processes, mitigate risks, and ensure the highest standards of safety and efficiency in their operations.
