ASTM D3828 Microscale Continuously Closed Flash Point Tester: Precise Flash Point Measurement for Small Sample Volumes

2025.01.30

The ASTM D3828 Standard outlines a method for determining the flash point of liquids using a microscale, continuously closed cup tester. This procedure identifies the temperature at which a liquid generates sufficient vapor to ignite. The flash point is a critical safety indicator in industries like petroleum and chemicals, as it signals the temperature at which a liquid’s vapor becomes flammable. Understanding the flash point is essential for the safe handling, storage, and transport of materials, as well as for ensuring quality control and compliance with safety regulations. Adhering to ASTM D3828 helps companies meet industry standards and mitigate the risk of fire hazards.

What is the Microscale Continuously Closed Flash Point Tester?

Description of the Microscale Tester

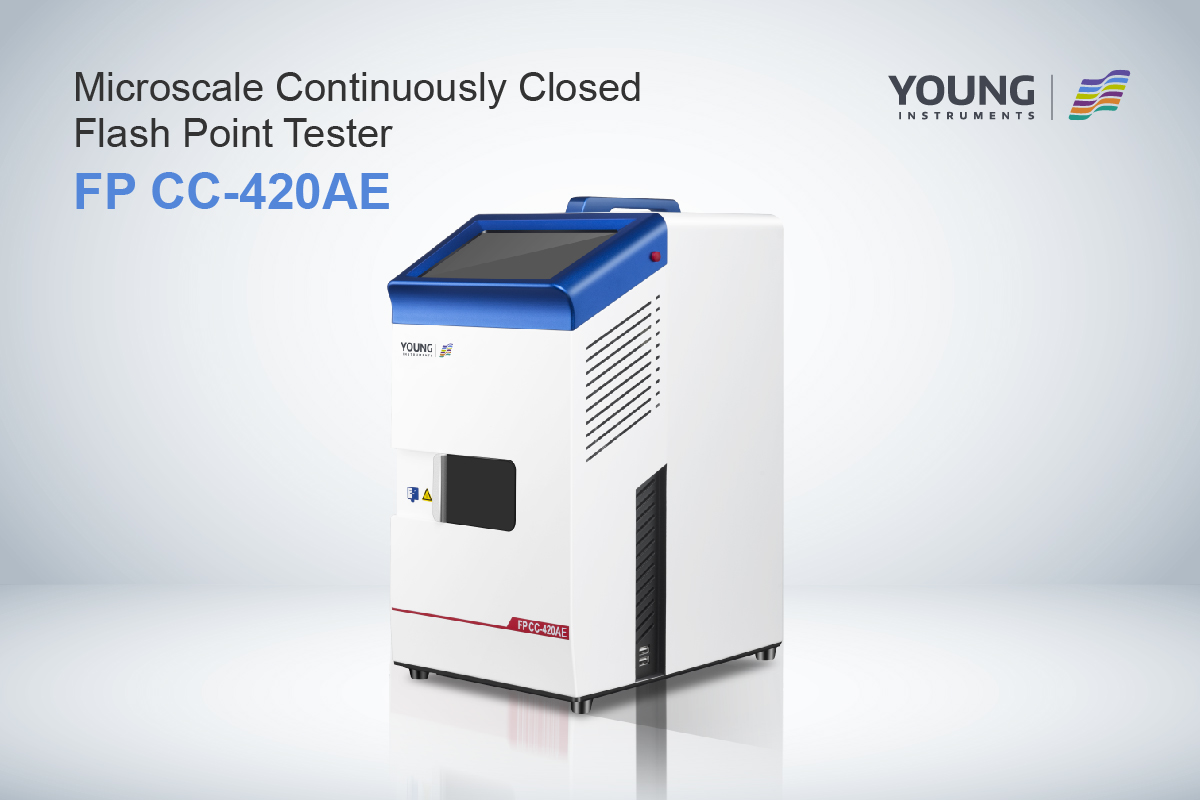

The Microscale Continuously Closed Flash Point Tester FP CC-420AE is a device designed to measure the flash points of liquids. Its main feature is its small scale, which allows for testing with minimal sample amounts. The tester works under a closed environment, ensuring that the liquid does not interact with the surrounding air, which can affect results. This continuous closed method helps achieve accurate flash point readings by eliminating the risk of sample contamination or external factors influencing the test. The device is built to be compact and easy to use, making it suitable for both laboratory and industrial settings. The microscale aspect of the tester reduces the amount of liquid needed, making it more efficient and cost-effective, especially when testing valuable or limited samples.

How It Works

The process for using the FP CC-420AE is simple and involves a few key steps. First, the sample is prepared by placing it in the tester’s cup. The tester uses the continuous closed cup method to measure the flash point. The sample is heated slowly while being sealed inside the tester, ensuring that no vapors escape. A small amount of heat is applied to the sample, and the tester monitors the temperature at which the sample produces enough vapor to ignite. This ignition is used to determine the flash point.

The technology behind the tester ensures that the measurements are precise. It uses sensors to detect the exact moment when ignition occurs, minimizing the margin for error. Moreover, the tester uses very little of the sample, making it ideal for expensive or limited samples. Because the system is closed, there is minimal exposure to air, preventing evaporation or other changes to the sample during the test. This helps maintain the integrity of the results. The tester can quickly provide the flash point value, which is crucial for understanding the safety and handling requirements of the material being tested.

Benefits of the FP CC-420AE

The FP CC-420AE is widely used due to its ability to meet the true operating conditions for flash point testing. It uses the continuous closed cup method, which is suitable for testing volatile materials in a safe and controlled environment. Here are some key benefits of using this tester:

Small Sample Volume

One of the main advantages of the FP CC-420AE is that it requires a very small sample volume. Depending on the specific test method used (ASTM D6450 or ASTM D7094), only 1 ml or 2 ml of sample is needed. This makes it ideal for testing valuable materials or substances that are in limited supply. It also helps reduce laboratory waste, as less sample is consumed during testing. This small sample requirement makes the tester both cost-effective and environmentally friendly.

Fast Testing Speed

Another benefit of the FP CC-420AE is its quick testing process. The entire test, including both the sample analysis and the cup cleaning, can be completed in just a few minutes. This quick turnaround time makes it ideal for laboratories or industries that need fast results. The fast testing speed also means that technicians can run multiple tests in a shorter period, improving overall efficiency.

7-inch Large Color Touchscreen Design

The tester is equipped with a large 7-inch color touchscreen that simplifies the operation process. The touchscreen allows for easy navigation and control of the testing process with just one touch. This makes it user-friendly and requires no special training for technicians. The intuitive interface reduces the complexity of using the tester, which is a major advantage in busy laboratory environments where ease of use is important. The touchscreen design also makes it easier to monitor the test in real-time and adjust settings as needed.

Safe and Flameless

Safety is a top priority when conducting flash point tests. The FP CC-420AE uses top-cover heating technology to prevent sample vapors from condensing. Condensed vapors could lead to inaccurate flash point results by artificially raising the measured value. The flameless design also ensures that there are no open flames involved in the testing process, further reducing the risk of accidents. This makes the tester safer to use compared to traditional methods, which may involve open flames or heating devices that can cause fire hazards.

Safety Assurance

In addition to being flameless, the tester is designed to ensure the safety of the technician. The hot parts of the instrument are not in contact with the external environment. This reduces the risk of accidental burns or exposure to hot surfaces. The design of the tester ensures that it can be used safely without requiring special protective equipment. This feature is particularly important in industrial settings where technicians may be operating the device for extended periods.

Applications and Industry Use Cases

Industries Benefiting from the FP CC-420AE

The FP CC-420AE is used in a wide range of industries where flash point testing is necessary. Some key industries include:

  • Petrochemical Industry: This industry often deals with volatile substances like fuels and solvents. The tester helps ensure that these materials meet safety standards for storage and transportation.
  • Pharmaceutical Industry: In pharmaceuticals, it’s essential to ensure that the chemicals used in drug production are safe and compliant with regulatory requirements. The tester helps with safety assurance.
  • Automotive Industry: The automotive industry uses the tester to evaluate fuels and other volatile substances to ensure their safety in vehicles.

These industries benefit from the FP CC-420AE because it offers fast, accurate, and safe testing, which is crucial for maintaining compliance and ensuring quality control.

Key Use Cases

The FP CC-420AE is commonly used for determining the flash points of various substances, including:

  • Solvents: Many solvents used in laboratories and industrial processes are highly volatile. The tester helps measure their flash points to assess their safe handling.
  • Oils: Oils, especially those used in industrial machinery, need to be tested for flash points to ensure that they can be safely stored and used without risk of combustion.
  • Fuels: The tester is frequently used to measure the flash points of fuels, ensuring that they are safe for use and transportation.
  • Other Volatile Materials: The tester can also be used for a wide range of other volatile materials, providing valuable data for industries that work with such substances.

In addition to flash point determination, the tester is used in quality control to ensure that products meet the required standards. It is also an essential tool for regulatory compliance, helping companies adhere to safety regulations. Furthermore, the tester is used in research applications, where accurate flash point data is necessary for scientific experiments and product development.

Regulatory Compliance and Accuracy Standards

Compliance with Industry Standards

The FP CC-420AE is designed to meet international safety regulations and ASTM standards. It is compliant with various industry guidelines, ensuring that the test results are accepted worldwide. By using this tester, companies can be confident that their flash point measurements are accurate and meet regulatory requirements. This compliance is especially important for industries like petrochemicals, pharmaceuticals, and automotive, where safety standards are strict and must be followed closely.

Accuracy and Testing Assurance

The precision of the FP CC-420AE is one of its key advantages. The tester’s technology ensures that the flash point is measured accurately, with minimal variation between tests. When compared to traditional flash point testing methods, the FP CC-420AE offers a higher level of precision. Traditional methods may require larger samples and are often more prone to error due to external factors. In contrast, the FP CC-420AE operates in a controlled, closed environment, which reduces the possibility of inaccuracies. The tester also uses advanced sensors to ensure that the flash point is determined with high precision, providing reliable results every time.

Final Words

The Microscale Continuously Closed Flash Point Tester FP CC-420AE is an efficient, safe, and accurate tool for measuring flash points. Its small sample volume, fast testing speed, and easy-to-use touchscreen design make it ideal for various industries like petrochemicals, pharmaceuticals, and automotive. The tester ensures precision with minimal sample consumption, meets international safety standards, and improves safety with flameless technology. Overall, this tester offers a reliable and cost-effective solution for flash point testing, helping businesses comply with regulations and maintain product quality.
