How to Ensure Quality and Reliability: Understanding ASTM E793 Standards

2024.05.17

ASTM E793-06, titled “Enthalpies of Fusion and Crystallization by Differential Scanning Calorimetry,” focuses on measuring the heat absorbed or released during the melting or crystallization of a unit mass of a sample. This parameter serves as a fundamental aspect of thermodynamics and plays a crucial role in assessing the thermal capacity of materials undergoing phase changes, especially in metal phase change energy storage materials.

The standard is widely applicable and suitable for testing the thermal enthalpy of metal materials. It involves rapidly heating the sample to 50°C below its expected melting temperature to establish equilibrium, followed by heating the sample within the melting range at a rate of 10°C/min until the baseline stabilizes after the melting endothermic peak. After maintaining the sample at this temperature for 2 minutes, the temperature is then lowered at the same rate. The sample size typically ranges from 1 to 15mg, and prior to conducting the test, it’s necessary to calibrate the instrument’s sensitivity using a standard sample.

In an era where technological advancements drive market competitiveness, the importance of quality and reliability across various industries cannot be overstated. Adhering to standards such as ASTM E793 ensures that products meet rigorous quality benchmarks, fostering trust and efficiency in industrial applications. This product uses milligram-level sample amounts and can determine glass transition temperature, melting point, crystallization temperature, crystallinity, melting enthalpy, crystallization enthalpy, crystallization kinetics, reaction kinetic parameters, specific heat capacity, material compatibility, gelation conversion rate, etc. Basic data are widely used in thermodynamics and kinetic research in the fields of polymer materials, biomedicine, inorganic non-metallic materials, petrochemicals, metallic materials, energetic materials, food industry and other fields. This article selects typical samples such as polymer materials and lithium ion materials, and uses various parameter information reflected by DSC curves to reveal the important impact of thermal processes and heat treatment on material composition, phase changes, and physical and chemical properties.

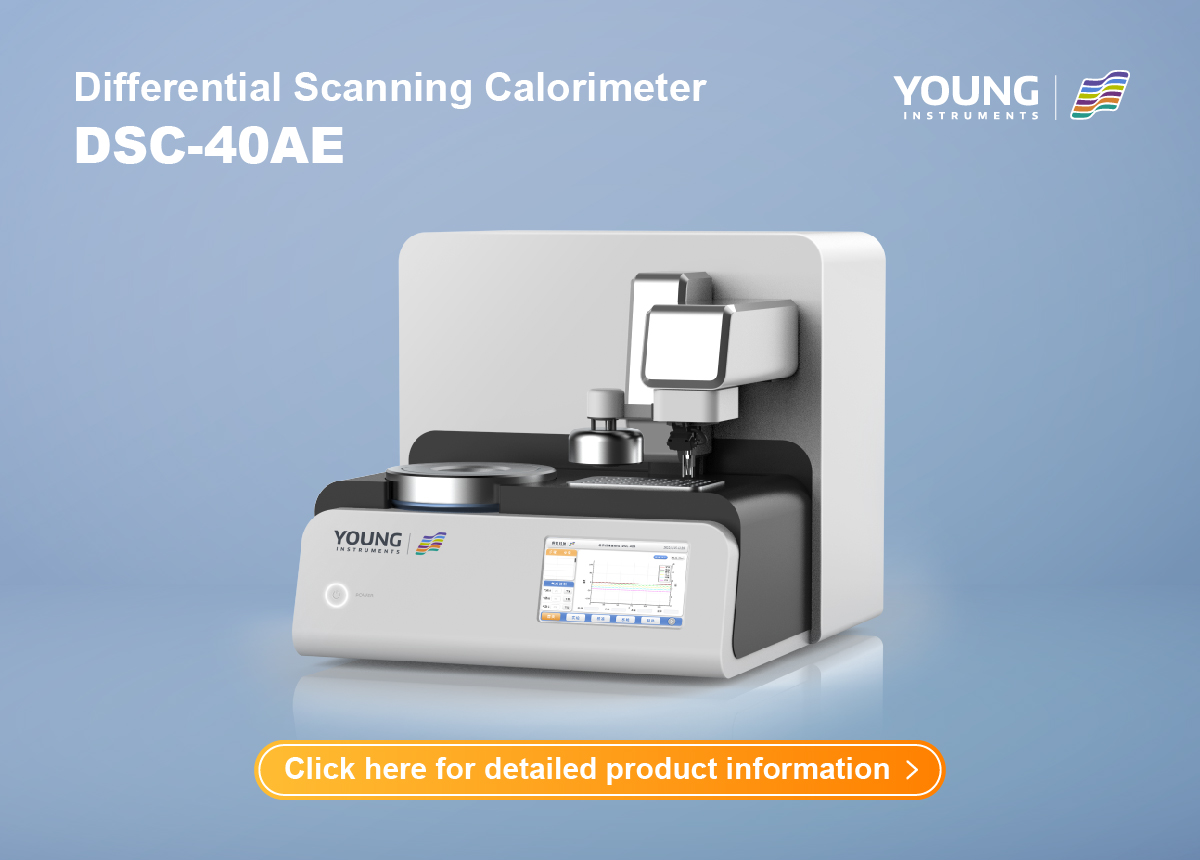

Differential Scanning Calorimeter Overview

Design Principles and Functionality

The Differential Scanning Calorimeter is meticulously engineered based on the tower-type heat flow method. This standard thermal analysis instrument measures the differential heat flow per unit time between a sample and a reference under controlled temperature variations. This process allows for precise analysis as temperature changes over time.

Features and Enhancements

  • High-Resolution Technology: Utilizes tower-type heat flow technology to enhance instrument resolution and sensitivity.
  • Efficient Heat Transfer: Features a silver furnace body that ensures higher heat transfer efficiency and minimizes cross-interference between the sample and reference.
  • Advanced Temperature Modulation: Employs specialized algorithms for precise temperature and heat flow signal modulation, crucial for accurately measuring specific heat capacity and exothermic reactions.
  • Versatile Temperature Control: Offers both ramp and isothermal temperature control modes.

Capabilities

This instrument is capable of determining a wide range of thermal properties, including DSC Onset Point, baseline stability, heat flow peaks, glass transition temperature, and enthalpy of absorption/release, among others. It has a data acquisition rate of 50Hz, which significantly improves sensitivity and resolution.

Structural and Operational Advantages

Enhanced Durability: Includes a nickel-chromium substrate to boost high-temperature oxidation resistance, sensitivity, and dynamic response.

Stability and Noise Reduction: Optimized design ensures reliable baseline stability and an improved signal-to-noise ratio.

User-Friendly Interface: Equipped with a high-definition touchscreen for simplified operation.

Standards and Compliance

Complies with multiple standards, including GB/T 22232, GB/T 28724, and ASTM standards such as E2253 and E793.

Specifications

  • Operating Environment: 5°C to 40°C, humidity less than 85% RH.
  • Temperature Control: From room temperature to 600°C, with a heating scan rate ranging from 0.1K/min to 200K/min.
  • Accuracy and Precision: Features include phase transition temperature accuracy of ±1K and enthalpy measurement precision of ±0.25%.

The Differential Scanning Calorimeter is a sophisticated instrument designed for detailed thermal analysis, ensuring high accuracy and efficiency in various scientific and industrial applications.

Understanding ASTM E793 Standards

Background of ASTM International

ASTM International, formerly known as the American Society for Testing and Materials, is a globally recognized leader in the development and delivery of voluntary consensus standards. Founded in 1898, the organization plays a critical role in guiding design, manufacturing, and compliance worldwide by creating standards that ensure product quality, safety, and functionality.

Scope and Objectives of ASTM E793

The ASTM E793 standard outlines a method for thermal analysis of solid materials using differential scanning calorimetry, or differential thermal analysis. This standard is designed to help laboratories accurately measure phase changes and chemical reactions as a function of temperature. This is critical for material characterization and quality control.

Key Components and Requirements of the Standards

  • Definition of Terms: ASTM E793 provides a comprehensive glossary of terms that are critical for understanding thermal analysis, including definitions for baseline stability, endothermic and exothermic reactions, and heat capacity.
  • Test Procedures: This standard describes the procedures for conducting thermal analysis. Includes instrument calibration, sample preparation, and specific conditions for conducting tests.
  • Data Analysis and Interpretation: It guides how to interpret the changes in heat flow and temperature accurately to analyze material properties, such as purity, stability, and composition.
  • Reporting Guidelines: ASTM E793 specifies the details that must be included in reporting, such as the equipment used, test conditions, sample description, and a detailed analysis of the results.

Implementing ASTM E793 Standards

Preparing for Compliance

  • Identifying Applicable Standards: Determine which aspects of ASTM E793 apply to the materials being tested and any additional relevant standards that may need to be considered.
  • Establishing Testing Protocols: Develop detailed protocols based on ASTM E793 to ensure consistency and reliability in testing procedures across all trials.
  • Procuring Necessary Equipment and Resources: Invest in appropriate thermal analysis instruments and ensure all materials and supplies meet the specifications outlined in ASTM E793.

Conducting Tests According to ASTM E793

  • Following Standardized Procedures: Adhere strictly to the testing procedures defined in ASTM E793 to maintain the integrity of the testing process.
  • Ensuring Accuracy and Consistency: Regularly calibrate equipment and train personnel to handle the procedures, ensuring tests are both accurate and reproducible.
  • Documenting Observations and Results: Keep meticulous records of all test conditions, observations, and outcomes as stipulated by the reporting guidelines of ASTM E793.

Interpreting and Analyzing Data

  • Statistical Analysis Techniques: Employ robust statistical methods to analyze the data collected from tests, helping to ensure that the conclusions drawn are valid and reliable.
  • Identifying Trends and Outliers: Analyze the data for any patterns or anomalies that could indicate issues with the sample or deviations in the expected results.
  • Drawing Conclusions and Making Recommendations: Based on the comprehensive analysis, draw informed conclusions about the material’s properties and make recommendations for potential applications or further testing as needed.

Implementing the ASTM E793 standard enables organizations like Hangzhou Zeal Instruments to maintain the high quality and reliability of their thermal analysis services. Ensure that its products meet international expectations and make significant contributions to the advancement of materials science.

Benefits of Adhering to ASTM E793 Standards

Enhanced Product Quality

Implementing ASTM E793 standards ensures that thermal analysis and related testing are conducted with precision, leading to the high-quality production of materials. This meticulous approach helps in identifying and rectifying inconsistencies early in the development phase, resulting in superior end products.

Improved Reliability and Performance

Adherence to these standards guarantees that products perform consistently under specified conditions. This reliability is crucial for industries where material performance can directly impact safety and functionality, such as in aerospace and pharmaceuticals.

Compliance with Regulatory Requirements

ASTM E793 helps companies meet various regulatory requirements. Ensure products are suitable for market and comply with international safety and quality standards. This is particularly important in global trade, where compliance can facilitate smoother market entry.

Increased Customer Confidence and Satisfaction

When companies adhere to recognized standards like ASTM E793, it reassures customers about the product’s quality and reliability, enhancing customer trust and satisfaction. This can lead to increased customer loyalty and a stronger brand reputation.

Challenges and Considerations

Cost and Resource Implications

While beneficial, implementing ASTM E793 standards can be costly. It may require significant investment in specialized equipment and resources, which can be a barrier, particularly for smaller enterprises.

Training and Expertise Requirements

Ensuring that staff are well-trained in ASTM E793 procedures demands time and resources. Companies must often invest in ongoing training and development to maintain high standards of testing and compliance.

Addressing Variability and Uncertainty

Interpreting data from thermal analysis involves dealing with variability and uncertainty inherent in experimental processes. Establishing robust protocols to manage these aspects is essential but challenging.

Adapting to Evolving Industry Needs and Technologies

As industries and technologies evolve, standards like ASTM E793 must also adapt. Keeping up with these changes requires companies to be agile and forward-thinking, continuously updating their practices and equipment.

Conclusion

Differential scanning calorimeters use tower heat flow technology. Provides precise thermal analysis by measuring the thermal difference between a sample and a reference under controlled temperature changes. With its high-resolution capabilities and efficient heat transfer, it accurately determines thermal properties such as DSC onset point and enthalpy. Meet different testing needs with advanced modulation and control. Its durable design, stable baseline and user-friendly interface ensure reliability. Simultaneous compliance with international standards such as ASTM E793 ensures quality and regulatory compliance. Although implementing standards like ASTM E793 can present challenges. Examples include increased costs and training requirements. But the long-term benefits in product performance, regulatory compliance, and market competitiveness outweigh these initial barriers. Hangzhou Zeal Instruments’ commitment to innovation and quality assurance has made them an industry leader, driving technological advancement and setting standards of excellence.
