Accurate Flash Point Testing: Introducing the Closed Cup Flash Point Tester
Have you ever wondered how safe your chemical or fuel-based product really is when it comes to handling, storage, or transportation? The flash point of a substance — the lowest temperature at which it can form an ignitable mixture in air — is a crucial indicator of its flammability. Understanding and measuring flash points is vital for industries that work with flammable materials, including chemicals, oils, food additives, and paints.
In this blog, we’ll explore the Closed Cup Flash Point Tester, an advanced tool designed to deliver highly accurate flash point results. This instrument is not only efficient but also ensures the highest level of safety during testing. Let’s dive into its technology, benefits, and applications.
The Need for Safe and Accurate Flash Point Testing
Why is Flash Point Testing Important?
Flash point testing is a critical aspect of safety protocols in many industries. The flash point determines whether a substance can ignite under specific conditions, which is essential for risk assessments related to fire safety, handling procedures, and regulatory compliance. For example, fuels, oils, and certain chemicals must be stored and transported with precautions based on their flash point, and knowing this value can help prevent dangerous situations.
In addition to safety, flash point testing is often required by global regulatory standards like ASTM (American Society for Testing and Materials) and ISO. These standards guide industries on the proper handling of materials and ensure that dangerous substances are clearly labeled with safety warnings.
Traditional Methods vs. Advanced Testing Technology
Traditionally, the ASTM D93 method (Pensky-Martens Closed Cup) was used for flash point testing. However, this method requires open flames and larger sample sizes, which presents significant safety risks and higher costs. The Closed Cup Flash Point Tester addresses these issues by providing a safer, more efficient alternative.
Introducing the Closed Cup Flash Point Tester
An Overview of the Tester
The Closed Cup Flash Point Tester, provided by Hangzhou Zeal Instruments Science & Technology Co., Ltd., offers a state-of-the-art solution for accurate and safe flash point testing. This instrument complies with key standards such as ASTM D6450, ASTM D7094, ASTM D93, and ASTM D3828, making it suitable for a wide range of applications, from fuel and oils to food additives and coatings.
Equipped with unique features like automatic testing, explosion detection, and temperature control, the Closed Cup Flash Point Tester is a significant advancement over traditional methods. It ensures safety by eliminating open flames and reducing the sample volume required for testing.
Core Technology Behind the Tester
The tester features closed-cup technology, meaning the sample is contained within a sealed chamber during the testing process. This design minimizes the risk of ignition and prevents dangerous fumes from escaping. It also includes automatic explosion detection and a fire protection system that continuously monitors for any signs of combustion or high-pressure build-up.
One of the standout features is its low sample volume requirement: the tester only needs 1 mL of sample, significantly reducing waste and cost. The instrument can run without human intervention, making it ideal for high-throughput environments.
Key Specifications of the Closed Cup Flash Point Tester
Accurate Temperature and Pressure Control
The Closed Cup Flash Point Tester offers precise control over temperature, allowing users to test a wide range of materials. The temperature control range varies depending on the module:
0°C to 260°C with the standard module
-30°C to 260°C with the low-temperature module
0°C to 420°C with the high-temperature module
-30°C to 420°C with both the low and high-temperature modules
This extensive temperature range ensures that almost any material, from fuels to oils to solvents, can be accurately tested.
Additionally, the pressure detection range spans from 0 to 200 kPa, enabling precise control over the atmospheric conditions inside the testing chamber.
Enhanced Safety Features
Safety is paramount when working with flammable materials, and the Closed Cup Flash Point Tester excels in this regard. Here are some of its key safety features:
No open flame: The instrument operates without an open flame, significantly reducing the risk of accidental ignition.
Automatic explosion detection: The tester automatically detects any potential explosion risks during the testing process.
Sealed chamber: The closed-cup design prevents harmful fumes from escaping, ensuring a safe testing environment.
Automatic atmospheric pressure calibration: The tester compensates for atmospheric pressure variations, which helps maintain accuracy and consistency.
Easy to Use with Advanced Automation
Unlike older manual methods, the Closed Cup Flash Point Tester is fully automated, making the testing process as easy as pressing a button. The instrument’s user-friendly interface provides real-time data and continuous monitoring, while all valves and controls operate automatically.
The machine stores up to 5,000 test results, allowing for easy data retrieval and analysis. Furthermore, the real-time temperature and pressure curves help users understand the behavior of the sample during testing, which can be crucial for evaluating the sample’s flammability characteristics.
Applications of the Closed Cup Flash Point Tester
Industries That Benefit from Flash Point Testing
The Closed Cup Flash Point Tester is essential in industries that deal with flammable substances. Here are some key sectors where this instrument is widely used:

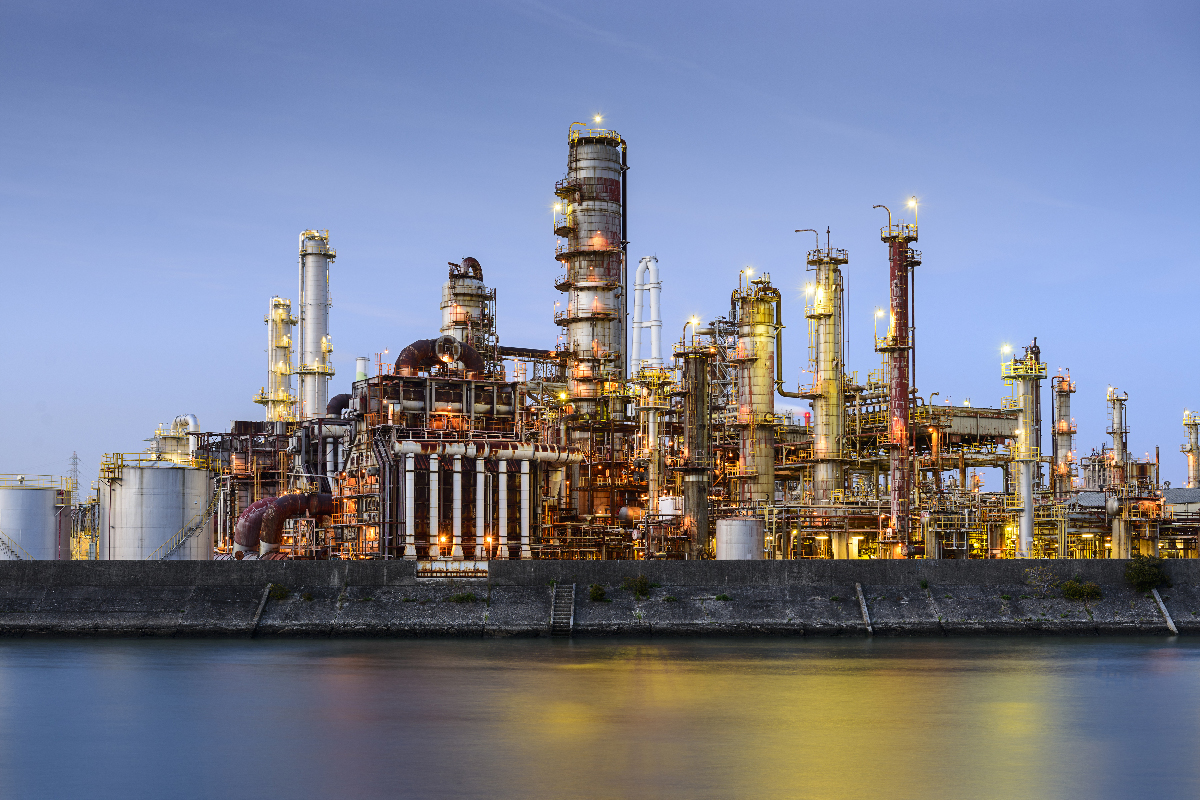

- Oil & Gas: Petroleum products like gasoline, diesel, and lubricants require accurate flash point testing to ensure safe storage, transport, and usage.
- Chemicals: Various chemicals and solvents are tested for flash point to meet regulatory safety standards.
- Paints & Coatings: Flash point testing is crucial for assessing the flammability of paint products, especially for those used in industrial and residential applications.
- Food & Beverage: Additives and extracts in food products, especially flavorings and essential oils, need to be tested for flash point to comply with safety standards.
- Pharmaceuticals: Certain chemicals and solvents used in pharmaceuticals may also require flash point testing to ensure safe handling.
The Advantage of Using Closed Cup Technology
By using the Closed Cup Flash Point Tester, industries can test materials with minimal sample volumes, reducing waste and contamination. Moreover, the automated design ensures that the testing process is fast, accurate, and reproducible, making it suitable for both R&D and quality control environments.
Why Choose the Closed Cup Flash Point Tester from Hangzhou Zeal Instruments?
Unmatched Accuracy and Safety
The Closed Cup Flash Point Tester offered by Hangzhou Zeal Instruments Science & Technology Co., Ltd. is the ideal choice for businesses looking for a reliable and safe solution for flash point testing. The instrument’s compliance with international standards like ASTM D6450, ASTM D7094, and ASTM D93 guarantees that the results meet the highest industry standards. Its innovative features, such as automatic operation, explosion detection, and closed-cup testing, ensure the highest level of safety during operation.
Cost-Effective and Efficient
With its minimal sample size requirements, low operating costs, and fast testing procedures, the Closed Cup Flash Point Tester is a cost-effective solution for industries that need to test large volumes of materials. The reduced risk of contamination and waste also makes it an environmentally friendly option.
Conclusion
Accurate flash point testing is crucial for ensuring the safety and compliance of materials used in many industries. The Closed Cup Flash Point Tester from Hangzhou Zeal Instruments Science & Technology Co., Ltd. provides a safe, efficient, and accurate method for conducting this important test. With its advanced features, compliance with international standards, and automated operation, this instrument is a game-changer for laboratories, manufacturers, and quality control teams across the globe.
To learn more about this state-of-the-art testing equipment, contact Hangzhou Zeal Instruments Science & Technology Co., Ltd. and see how the Closed Cup Flash Point Tester can enhance your operations.
