Combustible Dust Apparatus: Understanding Its Importance in Industrial Settings

If you work in an industry where combustible dust is present, you know how important it is to have the proper safety measures in place. One of those measures is the use of a combustible dust apparatus. This equipment is designed to simulate combustible dust explosions, allowing you to train your employees on how to prevent and respond to these dangerous situations.

A combustible dust apparatus typically consists of a chamber that can be filled with different types of dust, such as wood, coal, or flour. The dust is then ignited, and the resulting explosion is contained within the chamber. This allows you to see how different types of dust behave during an explosion and how different safety measures can affect the outcome.

Using a combustible dust apparatus can help you identify potential hazards in your workplace and develop a plan to mitigate those risks. It can also help you train your employees on how to recognize and respond to a combustible dust explosion, which can save lives in the event of an actual emergency.

Fundamentals of Combustible Dust

Combustible dust is a finely divided solid material that can catch fire and explode when it is suspended in air. It is a serious hazard in many industries, including food processing, woodworking, and metalworking. To prevent dust explosions, it is important to understand the characteristics of combustible dust and the mechanisms of dust explosions.

Characteristics of Combustible Dust

Combustible dust has several characteristics that make it dangerous. These include:

• Particle size: Dust particles must be small enough to become airborne and form a cloud. Generally, particles that are smaller than 420 microns in diameter can form a combustible dust cloud.
• Concentration: The concentration of dust in the air must be within a certain range for an explosion to occur. This is known as the explosive range, and it varies depending on the material.
• Combustibility: The material must be combustible, meaning it can burn or explode when exposed to a heat source or spark.
• Oxidant: There must be an oxidant, such as oxygen, present in the air to support combustion.

Mechanisms of Dust Explosions

Dust explosions can occur in two ways: primary and secondary.

• Primary explosions occur when a dust cloud is ignited by a heat source or spark. This initial explosion can disperse more dust, creating a larger secondary explosion.
• Secondary explosions occur when dust that has settled on surfaces is disturbed and becomes airborne, creating a dust cloud that can ignite and cause an explosion.

To prevent dust explosions, it is important to identify and control potential ignition sources, such as electrical equipment and hot surfaces. Additionally, regular cleaning and maintenance of equipment and facilities can help prevent the accumulation of combustible dust.

Combustible Dust Apparatus Types

There are several types of equipment used for testing, preventing, and mitigating combustible dust in industrial settings. These types include Dust Ignition Testing Equipment, Explosion Severity Test Devices, and Preventative and Mitigation Systems.

Dust Ignition Testing Equipment

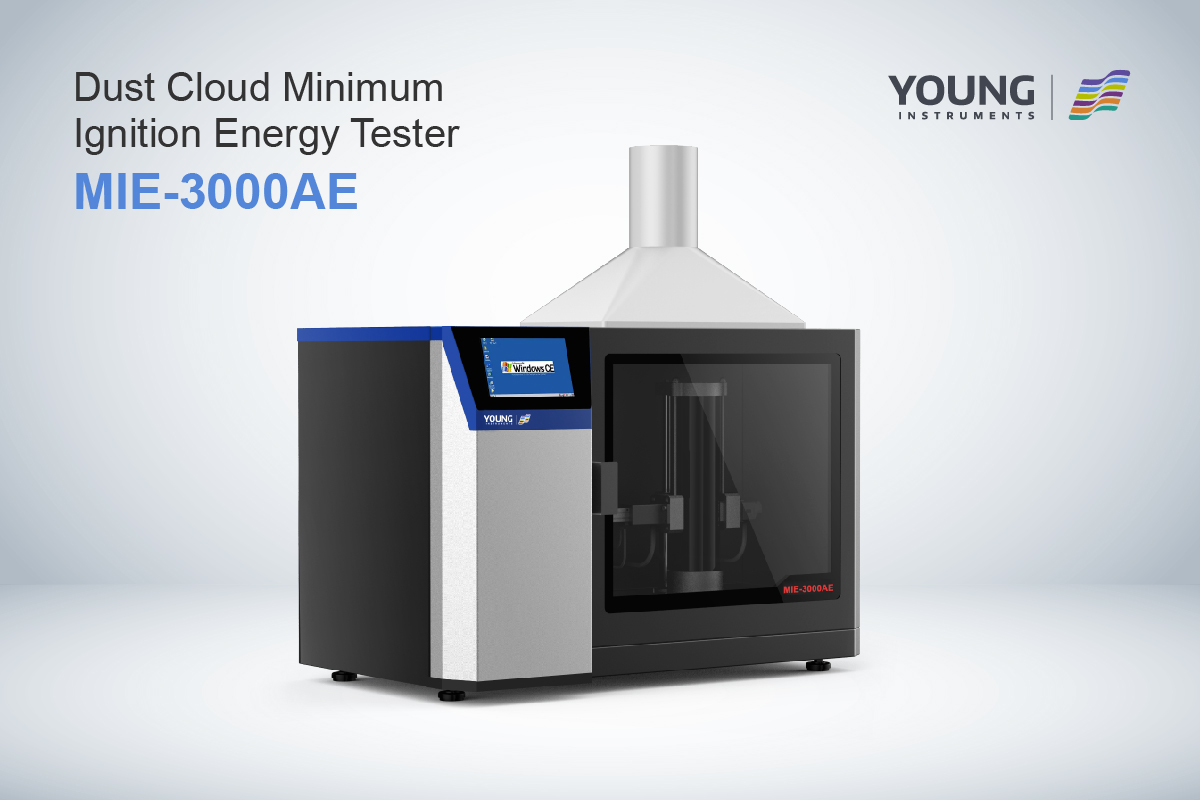

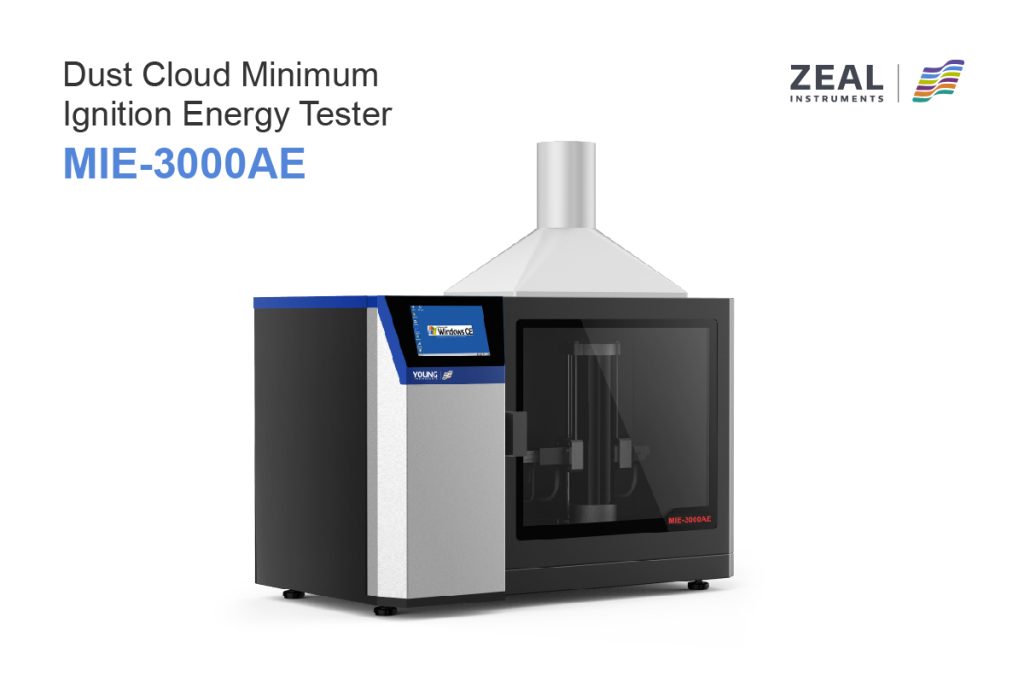

Dust Ignition Testing Equipment is used to determine the minimum ignition energy (MIE) of a dust cloud. This equipment is essential for identifying the risk of an explosion in a given area. The MIE is the minimum energy required to ignite a dust cloud, and it varies depending on the type of dust. Dust Ignition Testing Equipment consists of a test chamber, an ignition source, and a dust disperser. The test chamber is designed to simulate the conditions under which a dust cloud might form, while the ignition source is used to ignite the dust cloud. The dust disperser is used to create a uniform cloud of dust in the test chamber.

Explosion Severity Test Devices

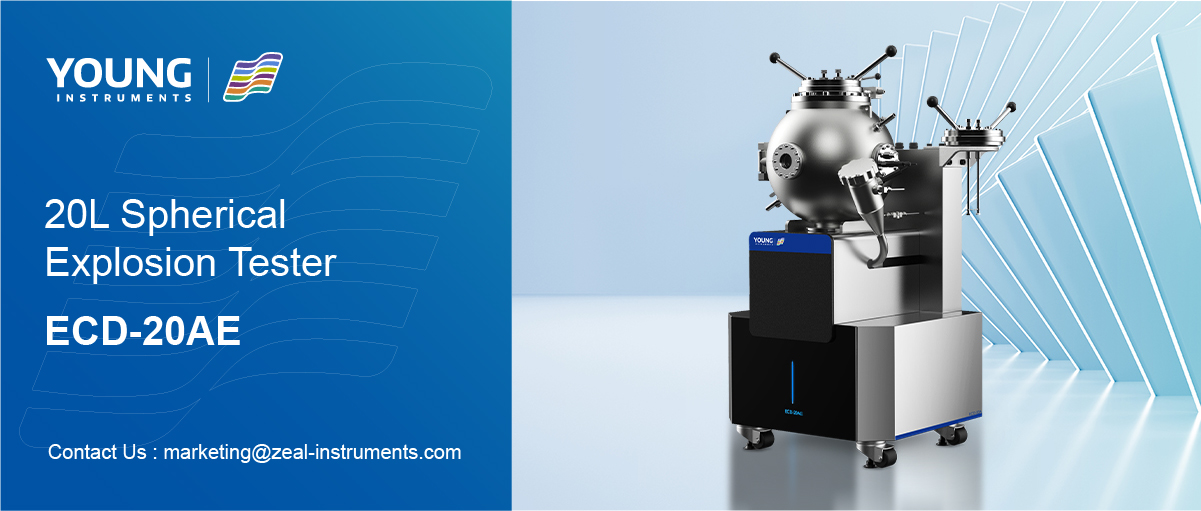

Explosion Severity Test Devices are used to determine the maximum explosion pressure (Pmax) and the maximum rate of pressure rise (Kst) of a dust cloud. These parameters are critical for designing explosion protection and mitigation systems. The Pmax is the maximum pressure that can be generated by an explosion, while the Kst is the rate at which the pressure rises during an explosion. Explosion Severity Test Devices consist of a test vessel, a dust disperser, and a pressure sensor. The test vessel is designed to contain a dust cloud, while the dust disperser is used to create a uniform cloud of dust in the test vessel. The pressure sensor is used to measure the pressure generated by the explosion.

Preventative and Mitigation Systems

Preventative and Mitigation Systems are used to prevent or mitigate the effects of an explosion in an industrial setting. These systems include explosion venting, explosion suppression, and explosion isolation. Explosion venting is a passive system that allows the explosion to vent to a safe location, while explosion suppression is an active system that detects and suppresses an explosion. Explosion isolation is a system that prevents the propagation of an explosion from one area to another. These systems are critical for ensuring the safety of workers and preventing damage to equipment.

Standards and Regulations

If your workplace produces or handles combustible dust, it is vital to comply with relevant standards and regulations to prevent accidents. Two important organizations that provide guidelines for combustible dust safety are OSHA and NFPA.

OSHA Requirements

OSHA requires employers to ensure that their workplaces are free from recognized hazards that could cause death or serious physical harm to employees. If a hazard is not addressed by an OSHA standard, Section 5(a)(1) of the OSH Act, often referred to as the General Duty Clause, may apply. This section requires employers to “furnish to each of his employees employment and a place of employment which are free from recognized hazards that are causing or are likely to cause death or serious physical harm to his employees”.

To comply with OSHA requirements, employers must implement a comprehensive combustible dust management program that includes hazard assessment, engineering and administrative controls, housekeeping, and employee training. Failure to comply with OSHA standards can result in penalties and fines.

NFPA Guidelines

The National Fire Protection Association (NFPA) provides comprehensive guidelines for managing combustible dust hazards. NFPA 652, Standard on the Fundamentals of Combustible Dust, provides general requirements for managing combustible dust fire and explosion hazards and directs users to NFPA’s industry- or commodity-specific standards, as appropriate. For example, NFPA 61, Standard for the Prevention of Fires and Dust Explosions in Agricultural and Food Processing Facilities, provides guidelines for managing combustible dust hazards in agricultural and food processing facilities .

Employers should also consult other relevant NFPA standards, such as NFPA 654, Standard for the Prevention of Fire and Dust Explosions from the Manufacturing, Processing, and Handling of Combustible Particulate Solids, and NFPA 655, Standard for Prevention of Sulfur Fires and Explosions. By following NFPA guidelines, employers can ensure that their workplaces are safe from combustible dust hazards and comply with relevant regulations.

Risk Assessment and Management

Combustible dust can pose a significant risk to workers and facilities. As such, it is crucial to conduct a thorough risk assessment and develop management strategies to minimize the risk of fire and explosion.

Dust Hazard Analysis

A Dust Hazard Analysis (DHA) is a critical component of any comprehensive risk assessment. The DHA should identify the sources of combustible dust, determine the likelihood of a fire or explosion, and evaluate the potential consequences.

During the DHA, it is essential to collect relevant documentation such as drawings and documents that define the process and equipment. It is also necessary to evaluate the physical and chemical properties of the dust, including particle size, moisture content, and explosibility.

Control and Prevention Strategies

Once the DHA is complete, it is essential to develop control and prevention strategies to minimize the risk of fire and explosion. There are several strategies that you can implement, including:

• Housekeeping: Regular cleaning of work areas and equipment can help prevent the accumulation of combustible dust. Vacuuming is the preferred method of cleaning, as it generates less dust than sweeping or blowing.

• Equipment Design: Equipment should be designed to minimize the potential for ignition sources. This includes the use of non-sparking tools, explosion-proof electrical equipment, and proper ventilation.

• Training: All employees who work with or around combustible dust should receive training on the hazards of combustible dust and the control and prevention strategies in place.

• Maintenance: Regular maintenance of equipment can help prevent the release of combustible dust and minimize the potential for ignition sources.

By conducting a thorough DHA and implementing control and prevention strategies, you can minimize the risk of fire and explosion from combustible dust.

Case Studies and Incident Analysis

When it comes to combustible dust, it’s important to learn from past incidents and analyze them to prevent future occurrences. Here are some case studies and incident analyses that can provide valuable insights:

US Ink/Sun Chemical Corporation

The US Ink/Sun Chemical Corporation incident in 2012 resulted in seven fatalities and many injuries. The incident occurred when a spark ignited combustible dust in the plant, causing a massive explosion. The Chemical Safety and Hazard Investigation Board (CSB) conducted an investigation and found that the plant had inadequate dust control measures in place. The CSB also found that the plant had not conducted a hazard assessment to identify potential hazards and implement appropriate controls. This incident highlights the importance of proper dust control measures and hazard assessments.

Wood Pellet Manufacturing Plant

A wood pellet manufacturing plant experienced a fire and combustible dust explosion in 2015. The incident prompted a risk-based approach to address the combustible dust hazards at the facility. The approach consisted of three parts: a sampling plan for obtaining appropriate test data, a gap analysis to identify areas for improvement, and implementation of recommendations based on the analysis. This case study demonstrates the importance of a risk-based approach to managing combustible dust hazards.

2018 Combustible Dust Incident Report

The Dust Safety Science organization published a report on combustible dust incidents in 2018. The report found that dust collection equipment had the largest percentage of combustible dust incidents, with an average of 23% since 2016. The report also found that human factors, such as inadequate training and poor housekeeping, were contributing factors in many incidents. This report emphasizes the importance of proper training and housekeeping to prevent combustible dust incidents.

By studying past incidents and analyzing data, we can learn valuable lessons and prevent future occurrences. It’s important to implement proper dust control measures, conduct hazard assessments, and provide adequate training to prevent combustible dust incidents.
