Essential Insights into Dust Layer Flammability Testing

2025.02.27

In industries that handle powders, grains, or coal, there’s an often-overlooked danger: combustible dust. So, how can we prevent potentially deadly explosions? One key solution is dust layer flammability testing. This process plays a crucial role in safeguarding both lives and property. In this article, we’ll dive into the science behind dust layer flammability testing, explore why it’s essential for various industries, and highlight how it helps ensure a safer workplace.

What is Dust Layer Flammability Testing?

Definition

Dust layer flammability testing measures how easily dust can catch fire when it is exposed to heat. It checks how thick a dust layer can get before it becomes a risk. This testing helps us understand the danger of dust in various industries.

Key Tests and Methods

To test the risk of dust explosions, we need to find the Minimum Ignition Temperature (MIT) of the dust. The MIT tells us the temperature at which the dust can catch fire. By knowing the MIT, we can choose explosion-proof equipment to prevent overheating and accidents. This testing is very important.There are two ways to test the MIT of dust: one for the dust layer and one for the dust cloud. Both states are common in workplaces. The dust cloud forms when dust is spread out in the air. In places where dust is highly concentrated, this cloud is common. On the other hand, the dust layer forms when dust settles on surfaces like equipment or pipes. This happens in factories or workshops. The dust layer is more common, but the dust cloud is dangerous too. It can form quickly and cause big problems.

Products and Solutions

Zeal Instruments offers several products to help prevent dust explosions. These include the Dust Cloud Minimum Ignition Energy Tester, the 20L Spherical Explosion Tester, and the Explosion Range Tester. For more information and pricing, contact us today.

Zeal Instruments’s Emerging Technologies and Innovations

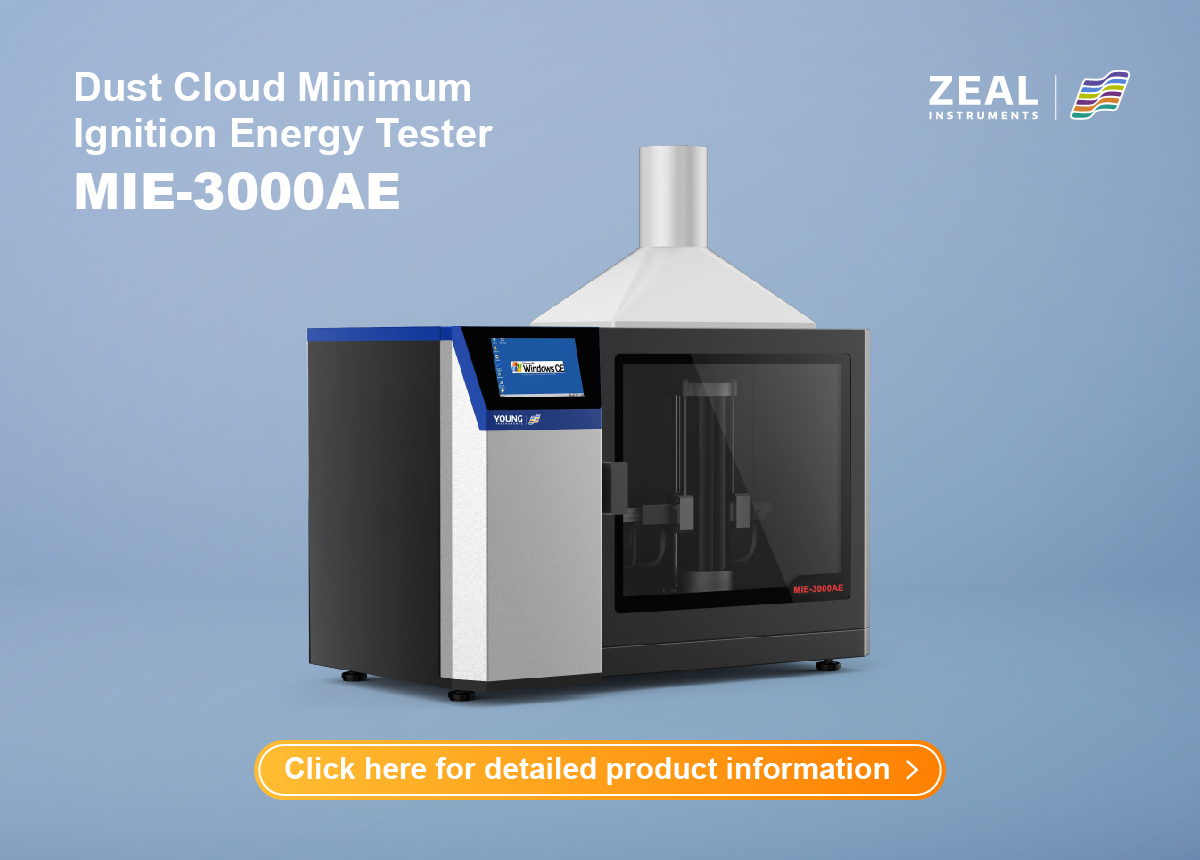

MIE-3000AE

The MIE-3000AE is designed to measure the Minimum Ignition Energy (MIE) of dust clouds. It disperses a certain mass of dust into a Hartmann tube using compressed air at a set pressure to form a dust cloud. The cloud is then ignited using a specific spark energy. A series of tests are performed to determine the dust sample’s MIE. This instrument shows how sensitive dust is to ignition from an energy perspective and helps assess the potential explosion risk of dust clouds.

The MIE-3000AE follows common international testing standards. It works for both standard and custom-defined parameters. You can input the ignition energy value to automatically select the optimal combination of capacitor and voltage. The high-voltage charging module automatically disconnects for added safety during operations. The dust dispersion device is well-designed to ensure uniform distribution of the dust samples.

The instrument allows flexible use, with adjustable electrode distance, powder pressure, and delay time. It also records electrode ignition counts automatically, which helps prompt timely electrode replacement to prevent testing errors. The Hartmann tube has a lifting and rotating mechanism for easy cleaning, saving valuable time. Remote ignition control keeps experimental personnel safe during testing.

The MIE-3000AE also has user hierarchy management for different account levels. The USB plug-and-play interface makes data management convenient. Its professional industrial design is simple yet effective. The user-friendly interface, combined with a 7-inch color LCD touchscreen, allows users to monitor the experimental process easily.

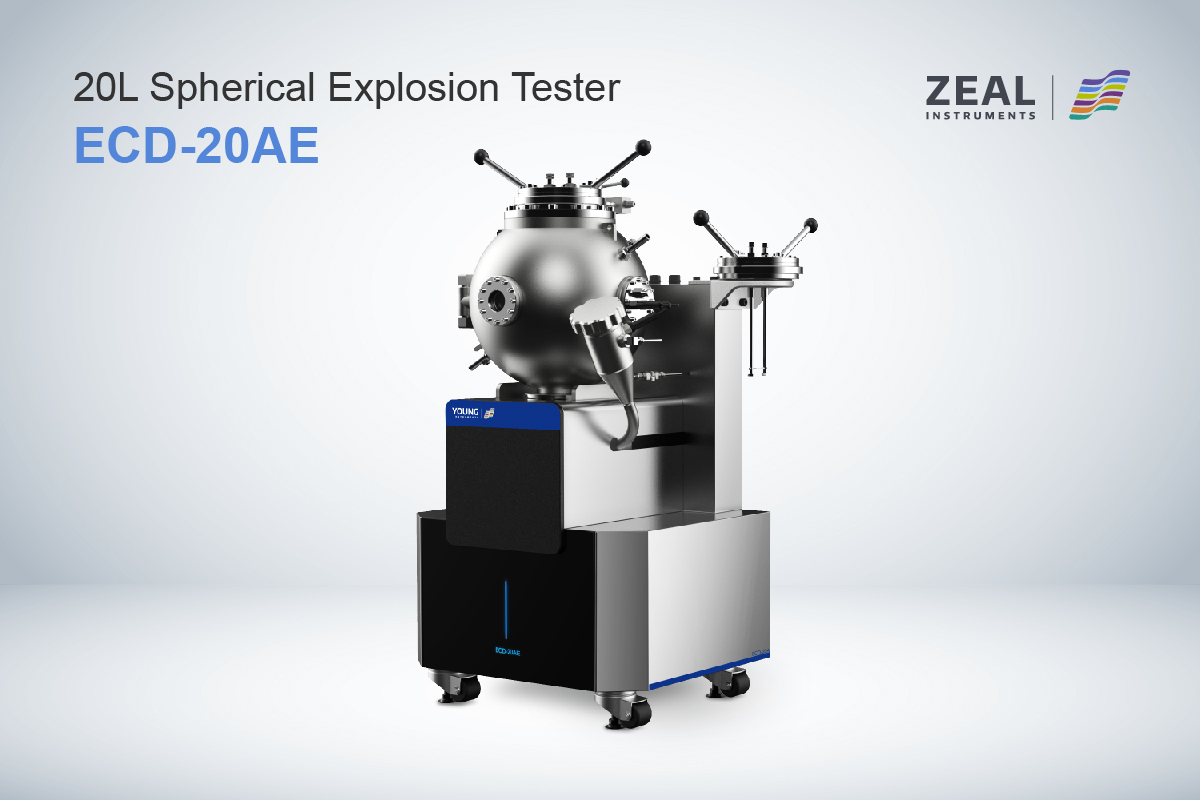

ECD-20AE

The ECD-20AE, or 20L Spherical Explosion Tester, is used to determine the maximum explosion pressure, maximum explosion pressure rise rate, and explosion index of dust cloud explosions under specific conditions. It is particularly useful for evaluating the explosive nature of materials such as aluminum powder, zinc powder, plastic powder, and various other substances like wheat flour, sawdust, and milk powder.

The ECD-20AE can test both dusts and gases, as well as mixed solid/gas systems. It includes common international test standards, but it can also be customized according to specific needs. The instrument supports both chemical and electrostatic ignition, making it versatile for different testing purposes.

This device includes an explosion vessel with a water-circulating jacket to maintain a constant temperature during testing. You can input the target concentration value, and the system will automatically clean, evacuate, and distribute the gas as required. The dust dispersion device ensures that dust is uniformly distributed in the explosion vessel. The experiments are carried out automatically with no need for human intervention.

The testing process is displayed in real-time, showing time and pressure data. This makes the testing more intuitive. The system also provides detailed information, including time-pressure curves. For safety, remote control options are available to protect experimental personnel. The instrument uses computer control, which provides strong data analysis and accurate judgment of the curve characteristics.

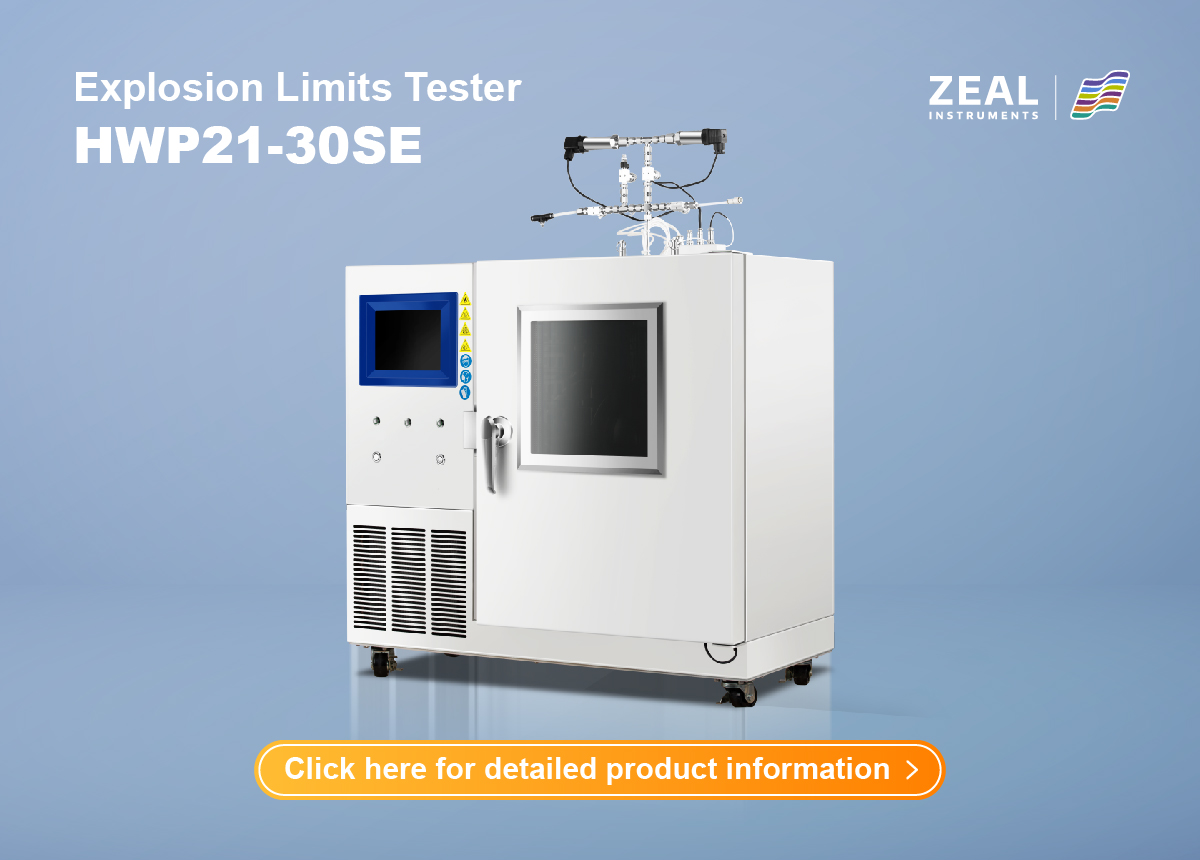

HWP21-30SE

The HWP21-30SE is an Explosion Range Tester designed to assess the combustion hazards of gases or flammable vapors. It determines the upper flammability limit (UFL) and lower flammability limit (LFL) of gas mixtures under standard atmospheric pressure and at specific temperatures. The test results are important for fire risk assessments.

This instrument offers optional 5L and 12L round glass test vessels, providing good compatibility for different test scenarios. It is equipped with pressure relief devices, including a spring-loaded compression device and a pressure relief door, ensuring safety during tests. The instrument’s compact structure combines heating and cooling, and it includes an air circulation system to maintain stable temperature conditions.

The HWP21-30SE has a pressure sensor and thermocouple to monitor the sample’s state. The system automatically tracks and records the test environment’s temperature, humidity, and atmospheric pressure. High-precision pressure sensors ensure accurate control of gas pressure ratios. Magnetic stirring and remote start controls make the ignition process more precise.

The system also features automatic cleaning of containers, which removes combustion products and ensures a clean environment for the next test. After testing, a video monitoring system records the process. The results can then be reviewed through playback for further analysis.

For added safety, a double interlock device prevents ignition if the door is not properly closed or if the temperature has not reached the required level. The back pressure relief door also comes with anti-fog protection for easy observation during tests.

Why Is Dust Flammability Testing Crucial?

The Hidden Dangers

Many industries, such as food processing and pharmaceuticals, work with fine dust particles. These particles are very flammable. In certain conditions, a small spark can cause a huge explosion. This makes testing very important for safety.

Real-World Examples

There have been many cases where dust explosions occurred because of poor testing. These accidents often led to serious damage and loss of life. Such examples show why it’s critical to test dust flammability properly.

Knowledge Expansion

Dust Cloud Ignition Risk

When dust is dispersed in the air as a dust cloud and comes into contact with high-temperature equipment or environments, it can reach its Minimum Ignition Temperature (MIT). This can cause the dust to ignite and possibly lead to an explosion. The MIT for a dust cloud indicates its sensitivity to high temperatures when it is in a dispersed state.

Dust Layer Ignition Risk

Unlike dust clouds, dust often settles and forms a dust layer. In this accumulated state, dust can still ignite if it reaches the Minimum Ignition Temperature. However, the ignition of a dust layer typically does not cause an immediate explosion. The MIT for a dust layer shows its sensitivity to heat when the dust is settled.

Choose the Right Equipment for Dust Explosion Safety

Zeal Instruments provides trusted solutions for dust explosion testing. Our MIE-3000AE measures the Minimum Ignition Energy (MIE) of dust clouds, while the 20L Spherical Explosion Tester ECD-20AE assesses the explosion risk of dust clouds. The Explosion Range Tester HWP21-30SE checks the combustion limits of gases and vapors. These precision tools deliver accurate results, helping you maintain a safer workplace.

Reach out today for more information and pricing.
