Gas Flammability Limit Tester: What You Need to Know
If you work with flammable gases or chemicals, you must be aware of the risks associated with them. Gas leaks can lead to explosions and fires, causing severe damage to property and life. To prevent such accidents, it is crucial to determine the flammability limits of gases and chemicals before using them in industrial processes. This is where a Gas Flammability Limit Tester comes into play.

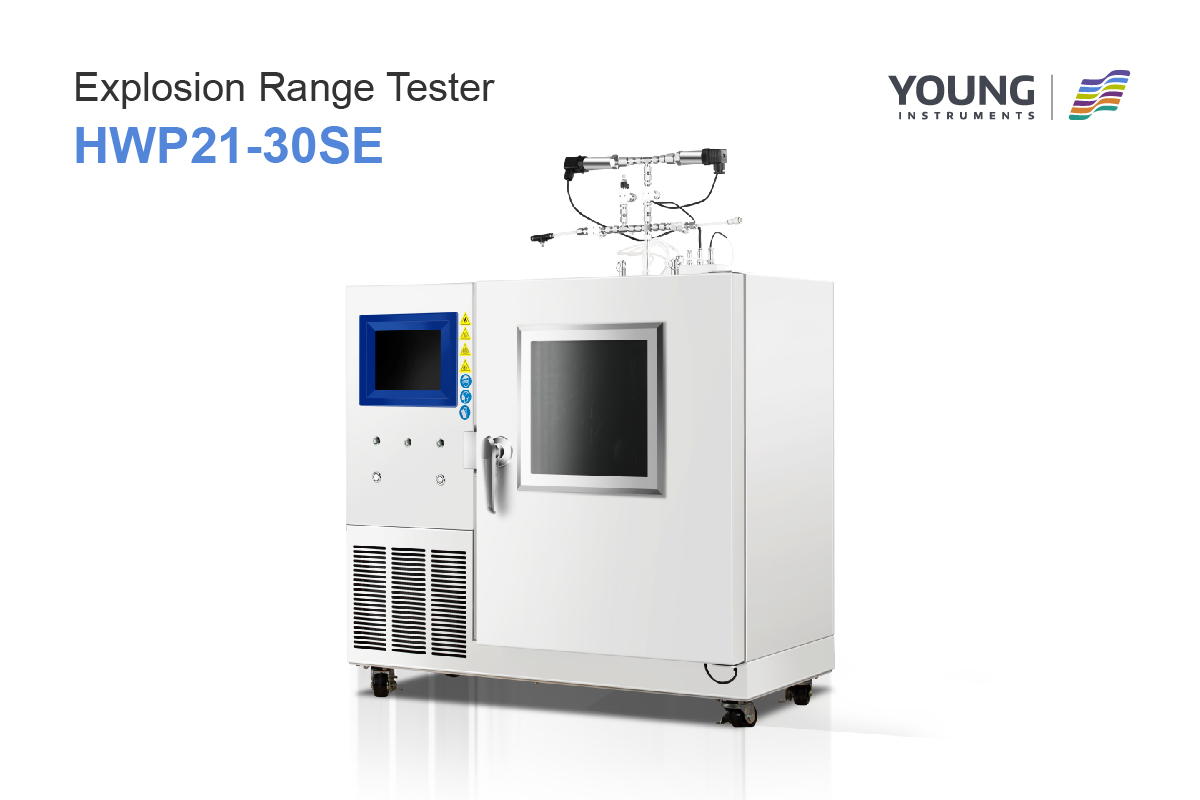

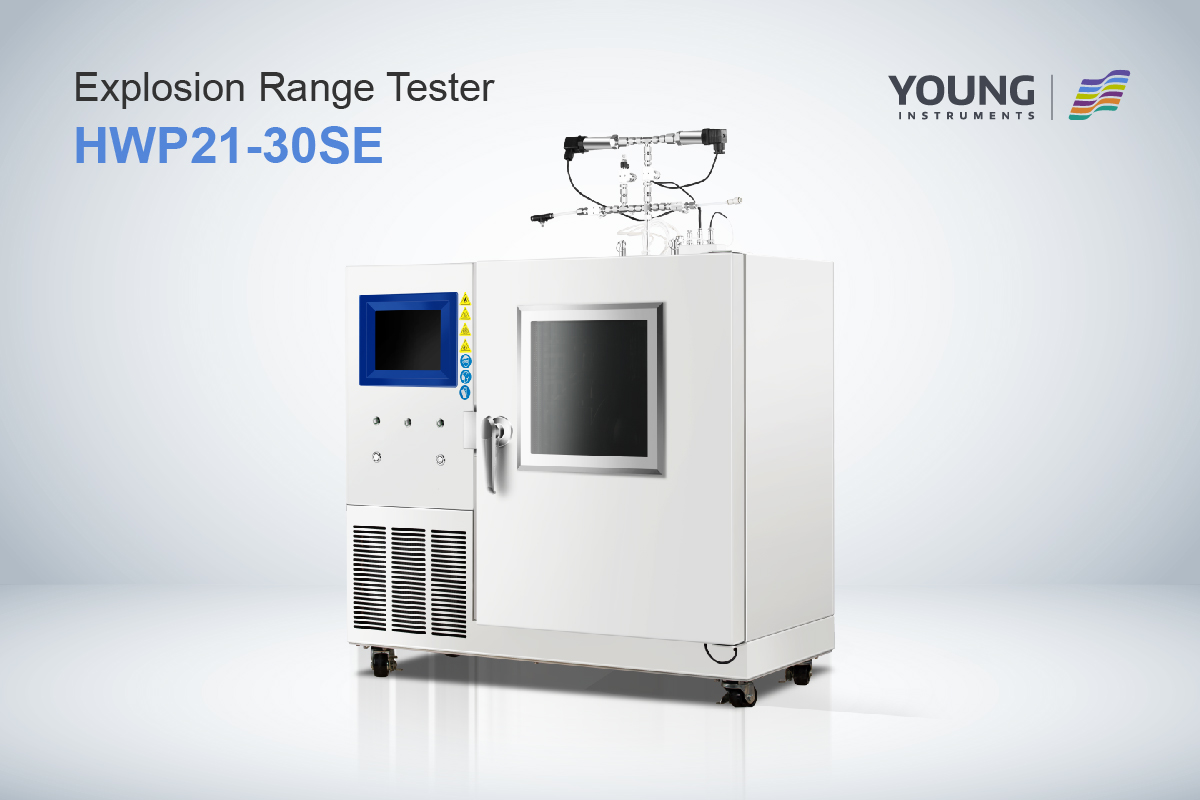

A Gas Flammability Limit Tester is a specialized instrument used to determine the lower flammability limit (LFL) of gases and chemicals. The LFL is the minimum concentration of a combustible substance in air that can ignite and propagate a flame. The tester works by filling an explosion chamber with the same composition of gas or vapor and testing it for ignition. The chamber’s volume is low, reducing test costs and improving test accuracy. The tester is designed in accordance with ASTM E681, which sets the standards for gas flammability testing.
Fundamentals of Gas Flammability
Flammability Concepts
When dealing with gas flammability, there are several key concepts to keep in mind. The first is the Lower Flammability Limit (LFL), which is the minimum concentration of gas in air at which a flame can propagate. Below this concentration, the mixture is too lean to ignite. The second concept is the Upper Flammability Limit (UFL), which is the maximum concentration of gas in air at which a flame can propagate. Above this concentration, the mixture is too rich to ignite. The range between the LFL and UFL is known as the Flammable Range or Explosive Range.
Another key concept is the Flash Point, which is the lowest temperature at which a gas can form an ignitable mixture in air. The Autoignition Temperature is the minimum temperature at which a gas can spontaneously ignite in air without an external ignition source.
Gas Flammability Ranges
Different gases have different flammability ranges, which can be affected by factors such as pressure, temperature, and the presence of other gases. For example, methane has a LFL of 5% and a UFL of 15%, while propane has a LFL of 2.1% and a UFL of 9.5%.
It is important to be aware of the flammability range of any gas being used or stored, as well as any potential sources of ignition. The Gas Flammability Limit Tester is a tool used to determine the lower flammability limit of a gas, which can help ensure safe handling and storage practices.
Gas Flammability Limit Tester Design
When it comes to testing the flammability of gas, a Gas Flammability Limit Tester is an essential tool. This device is designed to determine the lower and upper flammability limits of a gas mixture, which is crucial for safety in many industries. Here, we will take a closer look at the key components and operating principles of a Gas Flammability Limit Tester.
Key Components
A Gas Flammability Limit Tester consists of several key components that work together to provide accurate results. These components include:
- Explosion chamber: This is where the gas mixture is introduced and ignited to determine its flammability limits. The chamber is designed to be small in volume, which reduces the cost of testing while improving accuracy.
- Ignition source: This is used to ignite the gas mixture in the explosion chamber. It is typically a spark or flame that is introduced into the chamber at a specific point in the testing process.
- Pressure sensor: This is used to measure the pressure inside the explosion chamber during testing. This information is used to calculate the flammability limits of the gas mixture.
- Temperature sensor: This is used to measure the temperature inside the explosion chamber during testing. Temperature is an important factor in determining the flammability limits of a gas mixture.
Operating Principles
The Gas Flammability Limit Tester operates on the principle of introducing a gas mixture into the explosion chamber and igniting it with an ignition source. The pressure and temperature inside the chamber are then measured, and the results are used to calculate the lower and upper flammability limits of the gas mixture.
During testing, the gas mixture is introduced into the explosion chamber at a specific rate. The ignition source is then introduced into the chamber at a specific time, and the resulting pressure and temperature changes are measured. These measurements are used to determine the flammability limits of the gas mixture.
In conclusion, a Gas Flammability Limit Tester is an essential tool for testing the flammability of gas mixtures. Its key components and operating principles work together to provide accurate results that are crucial for safety in many industries.
Testing Procedures
Sample Preparation
Before testing, you need to prepare a sample of the gas you want to test. This involves ensuring that the gas is pure and free of any contaminants that could affect the test results. You can use a gas chromatograph to analyze the sample and ensure its purity.
Once you have a pure sample of the gas, you need to place it in a container that is suitable for testing. The container should be made of a material that can withstand the pressure and temperature of the test. It should also be free of any contaminants that could affect the test results.
Test Execution
To test the flammability limit of the gas, you need to fill the explosion chamber with the gas sample and ignite it. The explosion chamber is designed to contain the explosion and prevent it from causing any harm.
The Gas Flammability Limit Tester will then measure the concentration of the gas in the chamber and determine the lower flammability limit (LFL) and upper flammability limit (UFL) of the gas. These limits are expressed as a percentage of the gas concentration in air.
The test should be repeated several times to ensure accuracy, and the results should be recorded and analyzed. The Gas Flammability Limit Tester can be used to test a wide range of gases, and it is an essential tool for ensuring the safety of gas handling and storage operations.
In summary, the Gas Flammability Limit Tester is a powerful tool for testing the flammability limits of gases. By following the correct sample preparation and test execution procedures, you can ensure accurate and reliable results that will help you to maintain a safe and secure working environment.
Safety Considerations
When working with gas flammability limit testers, it is important to take proper safety precautions to prevent accidents and minimize risks. This section covers some of the key safety considerations to keep in mind when using this equipment.
Hazard Prevention
To prevent hazards and ensure safe operation of the gas flammability limit tester, it is important to follow these guidelines:
- Always wear appropriate personal protective equipment (PPE), such as gloves, safety glasses, and a lab coat, when working with the equipment.
- Make sure the equipment is properly grounded to prevent static electricity buildup.
- Ensure that the test area is well-ventilated to prevent the buildup of flammable gases.
- Keep the equipment away from sources of ignition, such as open flames and sparks.
- Do not smoke or use any other sources of ignition in the test area.
- Keep the equipment clean and free of debris to prevent contamination.
Emergency Protocols
Despite taking all necessary precautions, accidents can still happen. It is important to have emergency protocols in place to minimize the risks in case of an incident. Here are some steps you can take:
- Make sure you have a fire extinguisher and other appropriate emergency equipment nearby.
- Establish an evacuation plan and ensure that all personnel are aware of it.
- In case of a fire or explosion, turn off the equipment and vacate the area immediately.
- Contact emergency services if necessary.
By following these safety considerations, you can ensure safe and effective use of the gas flammability limit tester.
Data Interpretation and Analysis
Once you have conducted a test using a Gas Flammability Limit Tester, you will need to interpret and analyze the data collected. The interpretation of the data is critical to understanding the behavior of the gas mixture under test conditions.
One of the most important pieces of information that can be obtained from the test is the Lower Flammable Limit (LFL) and Upper Flammable Limit (UFL) of the gas mixture. These values are used to determine the safe operating range of the gas mixture. The LFL is the minimum concentration of the gas mixture that can ignite, while the UFL is the maximum concentration at which the mixture can ignite.
Another important piece of information that can be obtained from the test is the explosive range of the gas mixture. This range is the concentration of the gas mixture between the LFL and UFL, where an explosion can occur if an ignition source is present.
The data obtained from the Gas Flammability Limit Tester can be presented in various formats such as tables, graphs, and charts. These formats can help to visualize the data and make it easier to understand.
It is important to note that the accuracy of the data obtained from the Gas Flammability Limit Tester depends on several factors such as the quality of the equipment, the skill of the operator, and the conditions under which the test is conducted. It is essential to follow the manufacturer’s instructions and use the equipment correctly to obtain accurate and reliable data.
In summary, interpreting and analyzing the data obtained from the Gas Flammability Limit Tester is critical to understanding the behavior of the gas mixture under test conditions. The LFL, UFL, and explosive range are important pieces of information that can be obtained from the test. The data can be presented in various formats to aid visualization and understanding. Finally, it is essential to use the equipment correctly and follow the manufacturer’s instructions to obtain accurate and reliable data.
