Insights from the Heat Flow Meter Instrument
The thermal conductivity (or thermal resistance) is one of the main thermal properties of insulation materials, and it is the primary indicator to distinguish the quality of insulation materials. The heat flow meter method is internationally recognized as the standard method for testing the thermal conductivity of insulation materials. Zeal Instruments’ heat flow meter thermal conductivity tester HFM 510A is easy to operate, enabling fast and precise measurement of the thermal conductivity of insulation materials, meeting the industry’s requirements for high-performance insulation material thermal conductivity measurement systems.
Principle of the Heat Flow Meter Instrument:
- Sample Placement and Temperature Control: In the heat flow meter’s thermal conductivity testing, the sample is positioned between two heating plates: a cold plate and a hot plate. These plates automatically adjust their temperatures to achieve the user-defined average sample temperature, which is the mean temperature of both plates. This controlled setup ensures a consistent temperature differential across the sample, crucial for precise thermal conductivity measurements.
- Data Acquisition and Test Completion: Once the sample reaches thermal equilibrium under the specified conditions, the heat flow meter begins measuring the heat flow through the sample. The system then proceeds to automatically gather data until the test criteria are met, ensuring thorough and reliable measurement. Calibration of the heat flow sensor with standard samples enhances measurement accuracy, facilitating robust data collection and analysis.
- Analysis and Computational Modeling: Using principles based on Fourier’s law, the accompanying software computes thermal conductivity and thermal resistance from the collected average heat flow and resistance data. This software capability extends to generating graphical representations of the relationship between thermal conductivity and plate or average temperatures. Beyond thermal conductivity, the system supports the measurement and computation of specific heat capacity, offering a comprehensive toolkit for evaluating the material’s thermal behavior and insulation effectiveness.
Applications of the Heat Flow Meter Instrument:
Swift and Precise Thermal Conductivity Assessment
The Heat Flow Meter Instrument excels in swiftly and accurately measuring thermal conductivity, making it indispensable for evaluating insulation materials. Its rapid testing capabilities ensure efficient data acquisition, facilitating quick analysis and informed decision-making processes. The instrument’s precision guarantees reliable thermal property evaluations, which is crucial for industries demanding exacting standards in product development and quality assurance.
Impact of Load Variation on Material Density
A standout feature of the Heat Flow Meter Instrument is its capacity to regulate the applied load during testing. This capability enables the examination of how changes in the density of compressible materials influence their thermal conductivity. By simulating diverse pressure conditions, users can gain insights into material performance under varying operational stresses. This capability is particularly valuable in applications where materials experience compression and must maintain optimal insulation effectiveness.
Diverse Applications Across Industries
Beyond its primary function of thermal conductivity measurement, the Heat Flow Meter Instrument offers versatility in assessing specific heat capacities and thermal resistances. This broad applicability makes it suitable for a wide array of industrial uses—from enhancing building insulation and optimizing HVAC systems to supporting advancements in aerospace and automotive technologies. By providing essential data, this instrument contributes to the development and refinement of thermal management solutions across diverse sectors, ensuring materials meet rigorous performance standards.

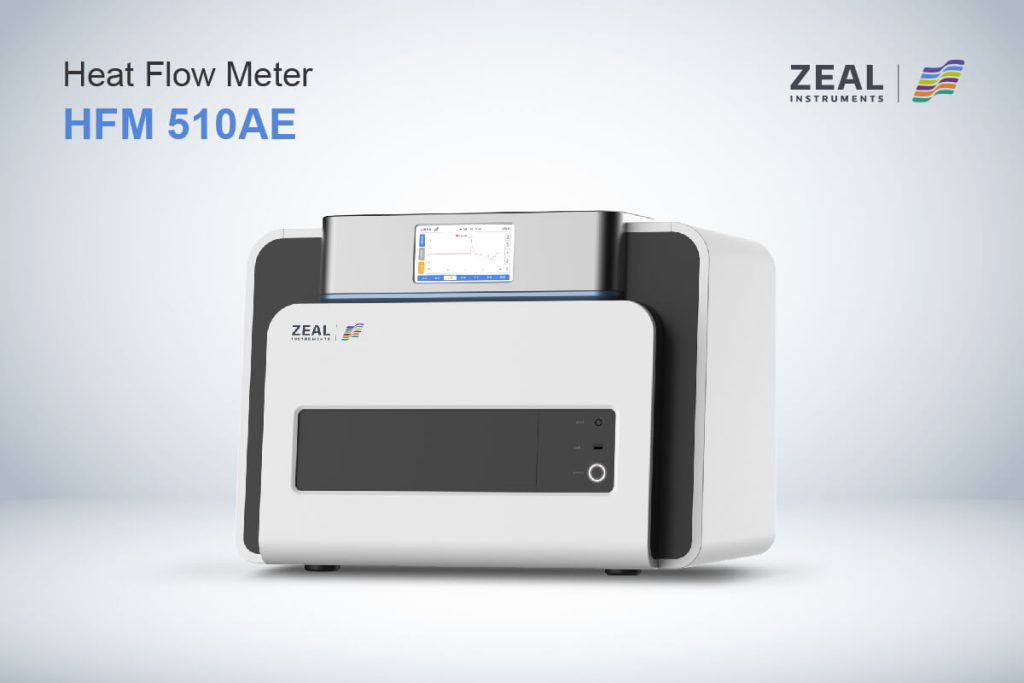

Product Advantages of the Heat Flow Meter HFM 510A:
Comprehensive Standards Compliance
The Heat Flow Meter HFM 510A adheres to multiple international standards, including GB/T 10295, ASTM C518, and ISO 8301. This compliance ensures its capability to test a variety of low thermal conductivity materials such as expanded polystyrene, extruded polystyrene, PU rigid foam, mineral wool, expanded perlite, foam glass, natural fiber materials, cork, wool, aerogel, concrete, and gypsum. This broad compatibility makes the HFM 510A a versatile tool for evaluating diverse insulation materials.
Advanced Automation Features
The HFM 510A is highly automated, enhancing user convenience and testing efficiency. Key features include automatic lifting and lowering of the heating plate, load force testing, thickness measurement, temperature control, and furnace door operation. The instrument’s dual heat flow sensors and independent temperature control for the upper and lower plates ensure precise and efficient sample testing. Additionally, external oil bath cooling and nitrogen gas purging for sample drying contribute to its robust performance and stability across a wide temperature range.
User-Friendly and Flexible Software
The software of the HFM 510A offers various extension accessory modes for thermal conductivity measurements, supporting offline operation for added experimental flexibility. It provides fully automated data collection, real-time monitoring, and display, and automatic test report generation. Features like optional user login, historical record queries, and customizable data storage and export further enhance user experience. The built-in industrial computer eliminates the need for external connections, while peripheral expandability allows for the connection of devices like a mouse, keyboard, and printer.
Sophisticated Industrial Design
The HFM 510A boasts outstanding industrial design, featuring a high-definition touchscreen display and an intelligent human-machine interface. Its aesthetically pleasing and elegant appearance complements its advanced functionality. The instrument’s Peltier heating plates, with over ten data acquisition points, achieve high accuracy (±(1~2)%) and repeatability (0.5%). The device supports variable temperature, pressure, and thickness modes, ensuring versatile testing capabilities to meet a wide range of experimental requirements.
Summary
When testing thermal conductivity, selecting appropriate testing methods and equipment is crucial to ensuring the accuracy of test results. Each method has its specific applicability and limitations, so the choice of testing method and equipment should be based on the physical properties of the sample and the testing objectives. Moreover, using high-quality equipment and following strict operating procedures are essential for obtaining reliable test results.
