The Power of Heat Flow Meter Thermal Conductivity Technology

2025.02.24

Energy conservation and emission reduction have become top global priorities. A key strategy to achieving these goals is the research and promotion of materials with enhanced insulation properties. Thermal conductivity is central to understanding a material’s thermal performance and plays a crucial role in the development of energy-efficient insulation solutions.

Zeal Instruments provides advanced, high-precision Heat Flow Meter Thermal Conductivity equipment, designed to accurately measure the thermal conductivity of insulation materials within a range of 0.001 W/(m·K) to 2 W/(m·K).

The Science Behind the Magic

How It Works

The Heat Flow Meter (HFM) is a precise tool for measuring thermal conductivity. It works automatically to simplify testing and improve accuracy. A sample, up to 300 × 300mm in size, is placed between two heat flow sensors. The thickness can range from a few millimeters to 100mm, making it suitable for different materials.

Once the sample is in place, a temperature gradient is applied. The temperature difference between the top and bottom can be fixed or adjusted. After a few minutes of stabilization, the system measures thermal conductivity and resistance. Automatic controls ensure quick and accurate results with minimal human input.

Why It Matters

The HFM is designed for ease of use. It has motor-controlled plates that move automatically during testing. It also measures sample thickness automatically, reducing preparation time and human error. Users can operate the system with the built-in controller or connect an external computer for advanced control.

The HFM is best for measuring low to medium thermal conductivity materials. These include polymers, ceramics, glass, rubber, composites, and some metals. It is widely used in materials science, construction, and environmental testing. Heat moves from warm to cool areas. By measuring this heat flow, the HFM calculates a material’s thermal conductivity. This data is essential for energy efficiency assessments, making the HFM a valuable tool in research and industry.

Why It Matters Now

Addressing Global Energy Demands

Materials with low thermal conductivity are particularly valuable in energy-saving applications, such as insulation for buildings, electrical components, and industrial equipment. The Heat Flow Meter helps identify and develop these materials, enabling industries to optimize energy efficiency, reduce emissions, and contribute to the broader effort to combat climate change.

Technological Advancements

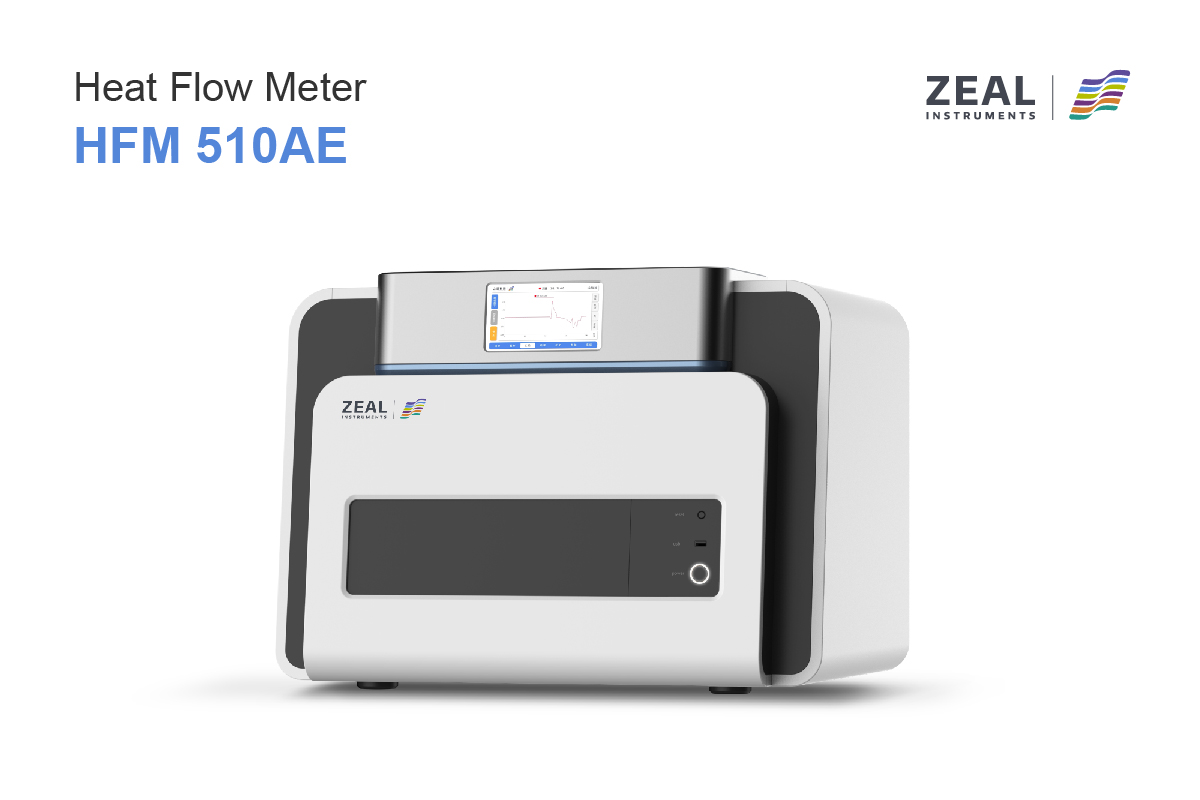

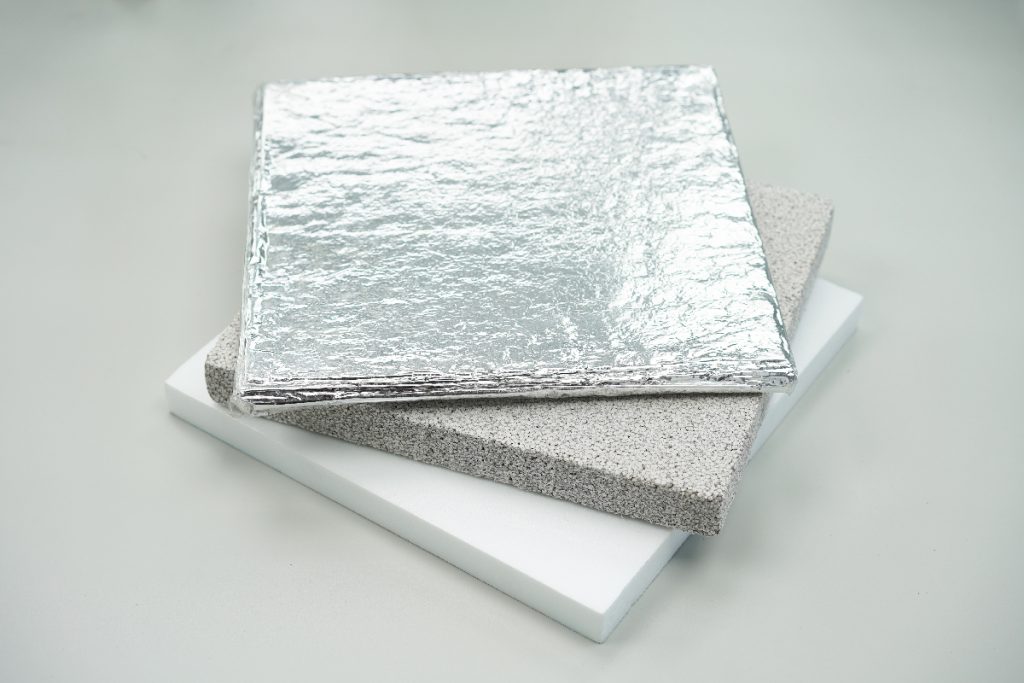

The HFM 510A, provided by Zeal Instruments, aligns with global testing standards, including GB/T 10295, ASTM C518, ISO 8301, and DIN EN 12667. These standards ensure that the testing procedure is reliable and consistent, allowing manufacturers, researchers, and engineers to confidently use the system for material development. The HFM 510A is capable of testing a wide range of materials known for their low thermal conductivity, including expanded polystyrene, extruded polystyrene, polyurethane (PU) rigid foam, mineral wool, expanded perlite, foam glass, natural fiber materials, cork, wool, aerogel, concrete, and gypsum.

The HFM 510A’s ability to measure a broad spectrum of materials makes it highly adaptable across industries that focus on improving thermal insulation, energy efficiency, and sustainability. This capacity for high-precision testing is essential as manufacturers and researchers seek new ways to reduce heat transfer, lower energy costs, and meet increasingly stringent environmental regulations.

Why HFM 510A Is the Best Choice

High Automation and Flexibility

The HFM 510A stands out for its high level of automation, which minimizes user involvement and increases consistency in testing. The system automates critical functions like lifting and lowering the heating plates, testing the load force, measuring sample thickness, and controlling temperature.

Additionally, the HFM 510A is highly flexible, with the ability to operate offline and store data for future reference. The system supports features like user logins, historical data retrieval, and customizable data storage, making it ideal for both laboratory and industrial settings.

External accessories such as an oil bath cooling system and nitrogen gas purging further enhance the efficiency of sample preparation by allowing controlled drying, ensuring the accuracy of the tests. Its wide temperature range and low environmental sensitivity make it adaptable for a variety of test conditions.

Fast and Efficient Testing

The HFM 510A is designed for rapid and precise testing. It employs dual heat flow sensors that enhance measurement accuracy, while independent temperature controls for the upper and lower plates allow it to adapt to uneven sample surfaces. These features ensure that the system can handle a wide variety of materials, including those with irregular shapes or surfaces.

The system’s ability to automatically collect data and generate test reports in real-time makes it particularly useful in high-throughput testing environments. Users can expect faster results with high accuracy, as the system continuously monitors and adjusts parameters to ensure precise measurements.

Moreover, the HFM 510A has been designed with peripheral expandability in mind. It includes a built-in industrial computer, eliminating the need for external connections while still providing compatibility with peripherals like mice, keyboards, and printers.

Specifications

The HFM 510A can operate in a temperature range of -5°C to 45°C and humidity below 95%. This makes it suitable for a wide range of laboratory conditions. The board temperature range is -30°C to 90°C. It is controlled by a Peltier system and additional cooling is provided by external refrigeration for increased accuracy.

The system’s thermal resistance range spans from 0.1m²·K/W to 8m²·K/W, while thermal conductivity ranges from 0.001W/(m·K) to 1W/(m·K), extendable up to 2W/(m·K). With an accuracy of ±1% to 2% and a repeatability of 0.5%, the system provides highly reliable results. The sample size can be up to 300mm in length and width, with a height of up to 100mm, and the thickness resolution is 0.02mm.

Real-World Impact

Energy Efficiency & Sustainability

The HFM 510A plays a critical role in advancing energy efficiency across various industries. Understanding thermal conductivity is key to optimizing materials for energy savings. For example, in the construction industry, improving the thermal resistance of insulation materials can significantly reduce heating and cooling costs, while in the electronics industry, optimizing heat management can enhance the lifespan and performance of devices.

Moreover, industries that focus on green technologies, such as renewable energy systems and eco-friendly building materials, benefit immensely from the precise measurements that the HFM 510A provides. By helping companies reduce energy waste, the system supports the development of more sustainable products and processes.

Applications Across Industries

The precision of the HFM 510A’s thermal conductivity testing makes it invaluable to a wide range of industries. From the construction of energy-efficient buildings to the design of high-performance materials in the aerospace and automotive industries. Insights gained from thermal conductivity measurements can help improve product development, quality control and energy conservation.

In the medical device industry, for example, materials used for medical insulation and packaging must be rigorously tested for thermal performance. The HFM 510A’s ability to provide accurate, reproducible data makes it a vital tool for ensuring the reliability and safety of such products.

Maximize Energy Efficiency with the HFM 510A

The HFM 510A delivers fast, accurate thermal conductivity measurements with ease. Featuring a user-friendly, automated design, it’s perfect for research, industrial applications, and environmental testing. Enhance your testing process, boost energy efficiency, and reduce emissions. Trust the HFM 510A for precise, dependable results every time.
