The Power of KST Testing: Key to Safer, More Reliable Dust Explosion Prevention
Industrial safety is a critical issue in environments like factories, mills, and warehouses, where the risk of dust explosions is significant. These explosions can cause extensive damage and pose serious threats to workers. To prevent accidents, it’s essential to conduct thorough risk assessments that identify potential hazards before they occur. Implementing preventive measures can greatly reduce the likelihood of a dust explosion. Prioritizing safety is key to protecting both lives and property, and taking the necessary precautions can help minimize the impact of any accidents. Addressing dust explosion risks must always remain a top priority.
The Silent Danger: What Are Dust Explosions?
Dust explosions are rapid, violent reactions that occur when fine dust particles suspended in the air come into contact with an ignition source. These explosions happen quickly, often with devastating consequences. The dust forms a cloud in the air, and if the concentration of dust reaches a certain level, it can ignite when exposed to heat, sparks, or flames. This ignition triggers a chain reaction, resulting in a powerful explosion. Dust explosions are particularly dangerous because they can spread rapidly and cause extensive damage, leading to injury, loss of life, and destruction of property. The speed and intensity of these explosions make them far more hazardous than they may initially seem.
Enter KST Testing: The Secret Weapon
Introduction to KST Testing
KST testing is a crucial method used to measure the severity of potential dust explosions. KST stands for Explosion Severity Factor, a value that quantifies the amount of energy a dust explosion could release. A higher KST value indicates a more dangerous explosion. By conducting KST testing, companies can better assess the risk level of dust in their environment and take appropriate measures to mitigate the hazard.
Key Dust Explosion Severity Parameters
Several parameters are used to evaluate the severity of dust explosions. These include:
- Maximum Explosion Pressure (pmax): The highest pressure reached during an explosion, indicating how forceful the explosion can be.
- Maximum Pressure Rise Rate: The speed at which pressure increases during the explosion, reflecting how quickly the explosion can escalate.
- Explosion Index (KST): A numerical value that summarizes the overall severity of the dust explosion. The higher the KST, the more dangerous the dust.
Zeal Instruments and the 20L Spherical Explosion Tester
Zeal Instruments offers the 20L Spherical Explosion Tester, an advanced tool designed to assess dust explosion hazards. This device measures critical parameters like the maximum explosion pressure (pmax), pressure rise rate (KST), and more. It also evaluates the Lower Explosive Limit (LEL), Minimum Explosive Concentration (MEC), and the Limit Oxygen Concentration (LOC) of dust. By providing these measurements, Zeal Instruments helps companies identify potential explosion hazards and implement the necessary safety measures to prevent catastrophic events.

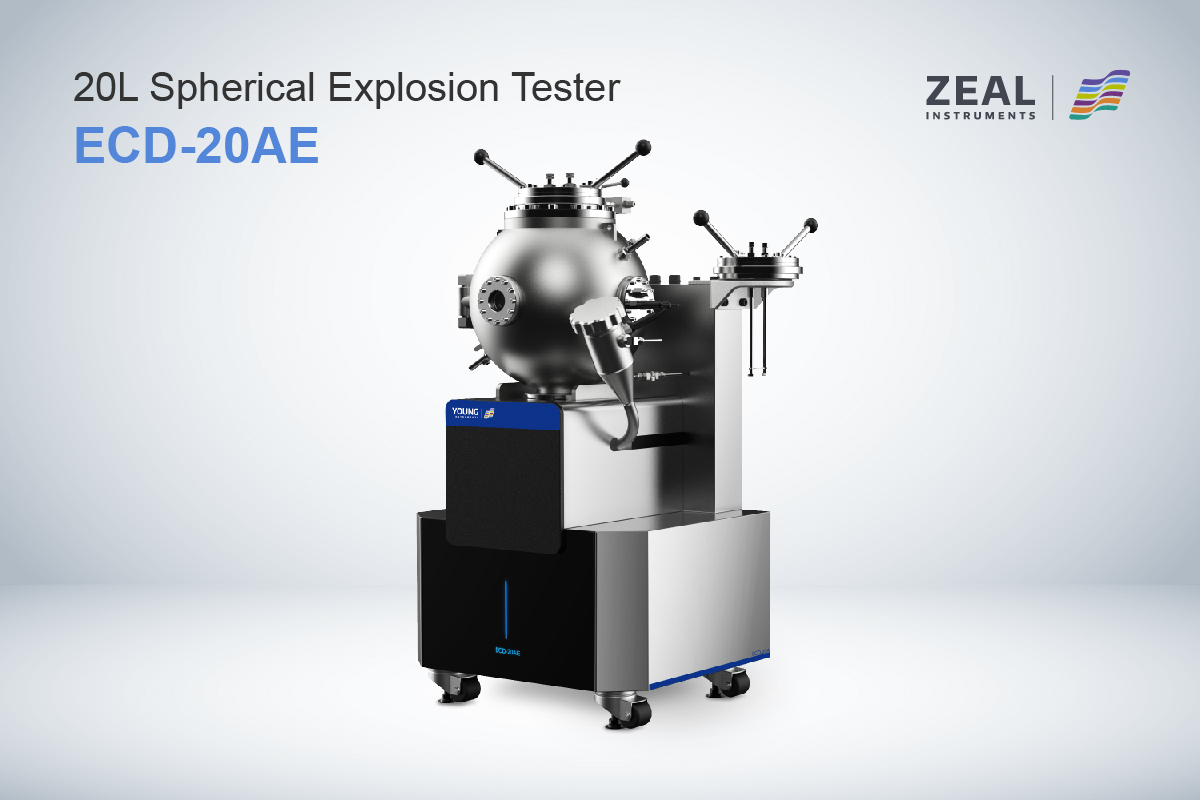

Zeal Instruments 20L Spherical Explosion Tester
ECD-20AE Overview
The ECD-20AE is a professional tool that measures essential explosion parameters, including maximum explosion pressure, maximum pressure rise rate, and explosion index (KST). It is used for dust explosion evaluations across a wide range of materials, including aluminum powder, zinc powder, plastic powder, organic drug intermediates, wheat powder, sugar, sawdust, and more. This device is vital for safety testing in industrial production and processing environments.
Versatility in Testing Dusts, Gases, and Solid/Gas Mixtures
This tester is designed to assess explosion parameters not only for dusts but also for gases and mixed solid/gas systems. It can handle both chemical and electrostatic ignition, offering flexibility in various testing conditions. The system allows operators to input the target concentration, after which the tester automatically cleans, evacuates, and distributes the gas. Experiments run autonomously, and the system provides detailed time-pressure curves to help analyze explosion characteristics. Its computer control ensures accurate data collection and analysis.
Built-in International Test Standards
The 20L Spherical Explosion Tester is designed to meet international test standards, with options for both standard and customizable settings. It features a water-circulating jacket that maintains a stable temperature throughout the test and a dust dispersing system that ensures even distribution of dust in the explosion vessel. Real-time time-pressure data is displayed for easier interpretation, and remote control capabilities help ensure safety by keeping experimental personnel away from the testing area.
Specifications
The Zeal Instruments 20L Spherical Explosion Tester operates in environments with temperatures between 5℃ and 45℃ and humidity levels below 85%. The explosion vessel is made of stainless steel 316, capable of withstanding pressures up to 3.0MPa at 25℃ and temperatures up to 220℃. It also includes a diffusion pressure sensor with a range of 0-3.5MPa, an explosion pressure detection range of 0-10.0MPa, and a temperature sensor that measures from 0 to 1000℃. The system provides high precision and rapid response, ensuring accurate data for testing and analysis.
Statistics on Dust Explosions Across Industries
Dust explosions pose a significant risk in many industries. Over recent years, thousands of incidents have been reported in factories, warehouses, and other industrial settings. The food processing, mining, and chemical industries, in particular, have seen numerous fatalities and substantial financial losses due to dust explosions. The risk is not limited to one specific sector; it extends to any industry dealing with fine powders or dust particles. These statistics underline how widespread and common the danger is across various industries, emphasizing the need for robust safety measures.
Real-Life Examples of Catastrophic Dust Explosions
The severity of dust explosions is evident in real-world incidents. For example, in 2008, a catastrophic dust explosion occurred at a sugar factory in Georgia, USA. It killed 14 people, injured many others, and caused extensive damage to the factory. Another tragedy occurred in 1986 at a coal mine in the UK, where a dust explosion claimed the lives of 26 workers. These incidents highlight the destructive power of dust explosions. They emphasize the importance of prioritizing safety in dusty environments.

Applications of Dust Explosion Severity Parameters
Relief Explosion Venting
Relief explosion venting is a safety measure used to release high-pressure gases during an explosion. Vents are installed in equipment or buildings to safely expel combustion products and unburned materials during a dust explosion. This method reduces the risk of equipment damage and minimizes the impact of the explosion on surrounding areas by safely releasing excess pressure.
Explosion Suppression
Explosion suppression systems are used in ducts or dust collectors to inject fire-extinguishing agents when an explosion occurs. These agents suppress the explosion, preventing it from spreading and limiting damage to equipment and facilities. This method helps control the explosion’s impact and reduce its destructive power.
Explosion Containment
Explosion containment technologies aim to limit the spread of an explosion by containing it in its early stages. These systems use physical and chemical methods to control the explosion, such as explosion containment valves that help prevent the explosion from affecting other areas of the facility.
Explosion Resistance
Explosion-resistant equipment is designed to withstand the impact of a dust explosion without sustaining damage. While more expensive, this equipment is critical in environments where other safety methods—such as venting or suppression—are not feasible. It is commonly used in areas dealing with toxic, corrosive, or highly explosive dusts and materials.
Boost Workplace Safety with Zeal Instruments 20L Spherical Explosion Tester
Prioritize safety with Zeal Instruments’ 20L Spherical Explosion Tester ECD-20AE. This advanced tool precisely measures dust explosion parameters, enabling you to prevent potential accidents. It tests explosion pressure, temperature, and more, ensuring your team and equipment are safeguarded. Invest in the most reliable safety testing solution today!
