Maximum Explosion Pressure: Key Factor in Dust Explosion Safety
When it comes to industrial processes involving combustible dust or powders, safety is of paramount importance. The potential for fire or explosions in these environments is a significant concern, and specialized equipment is necessary to prevent such catastrophic events. One of the most critical factors in assessing the risk of explosion is the maximum explosion pressure (Pmax) of the dust or gas involved. In this blog, we will delve into the concept of maximum explosion pressure, the importance of testing, and recommend advanced testing instruments provided by Hangzhou Zeal Instruments Science & Technology Co., Ltd. that ensure safety in industrial environments.
What Is Maximum Explosion Pressure?
The Role of Dust Explosions in Industrial Safety
A critical aspect of dust explosion safety is understanding the specific characteristics of the dust involved. Not all dust is combustible, but for those that are, it is essential to measure various parameters that influence how they react when ignited. One of the key parameters is maximum explosion pressure (Pmax), which is the highest pressure produced during an explosion in a closed vessel. This value is critical in designing explosion prevention and protection systems, ensuring that the containment vessels and safety mechanisms can withstand or mitigate such pressure.
How Maximum Explosion Pressure Is Measured
To determine the Pmax of a combustible dust, specialized testing instruments are used. These devices simulate the explosion conditions in a controlled environment, allowing researchers to measure the pressure and rate of pressure rise. The results provide valuable data to design systems that can manage the risks associated with dust explosions.
Why Pmax Is Critical for Industrial Safety
Understanding the maximum explosion pressure is vital for several reasons:
System Design: Properly designed dust collection and containment systems must be capable of withstanding the maximum pressures that may occur during a dust explosion.
Explosion Prevention: Knowing the Pmax helps in designing systems that prevent explosions by either reducing the likelihood of ignition or limiting the spread of the explosion.
Regulatory Compliance: Industrial safety regulations require specific measures to be in place based on the explosion characteristics of the dust involved. Having accurate Pmax data ensures that facilities meet these safety standards.

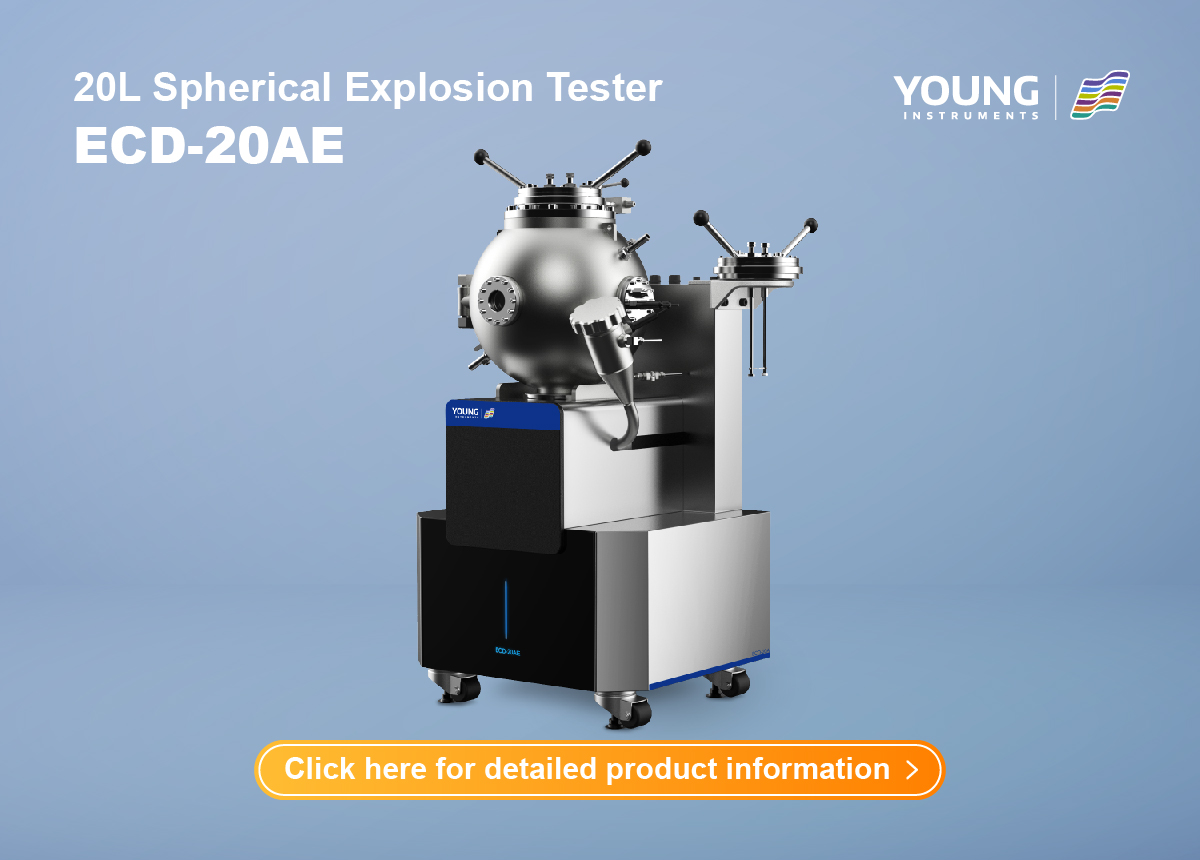

20L Spherical Explosion Tester (ECD-20AE)
Overview and Technical Parameters
The 20L Spherical Explosion Tester is a professional instrument designed to measure the maximum explosion pressure, the rate of pressure rise, and the explosion index of dust clouds under specific conditions. It is widely used for evaluating the explosion characteristics of various types of dust, such as aluminum, zinc, plastic, and organic powders.
Test Parameters: Maximum Explosion Pressure, Pressure Rise Rate, Explosion Index
Working Environment: 5℃ to 45℃, <85% RH
Explosion Container: 20L stainless steel ball with jacket, pressure resistance up to 3.0 MPa
Key Features:
- Suitable for testing gases, dusts, and mixed systems.
- Chemical and electrostatic ignition methods available.
- Automatic gas distribution system ensures precision.
- Real-time monitoring of explosion pressure and detailed results analysis.
Importance in Industrial Settings
This instrument plays a crucial role in providing accurate explosion data, enabling industries to design safer dust containment systems. Its versatility in handling different dust types makes it indispensable for companies handling combustible materials. The ability to remotely control ignition and monitor the process ensures the safety of personnel, while the precision in pressure detection allows for thorough risk assessments.
Advanced Features for Accurate Testing
One standout feature of the ECD-20AE is its automatic air distribution and dust dispersal system, ensuring that the dust is evenly dispersed within the explosion vessel, leading to more accurate and repeatable test results. This level of precision is vital when testing different types of dust for their explosive properties.

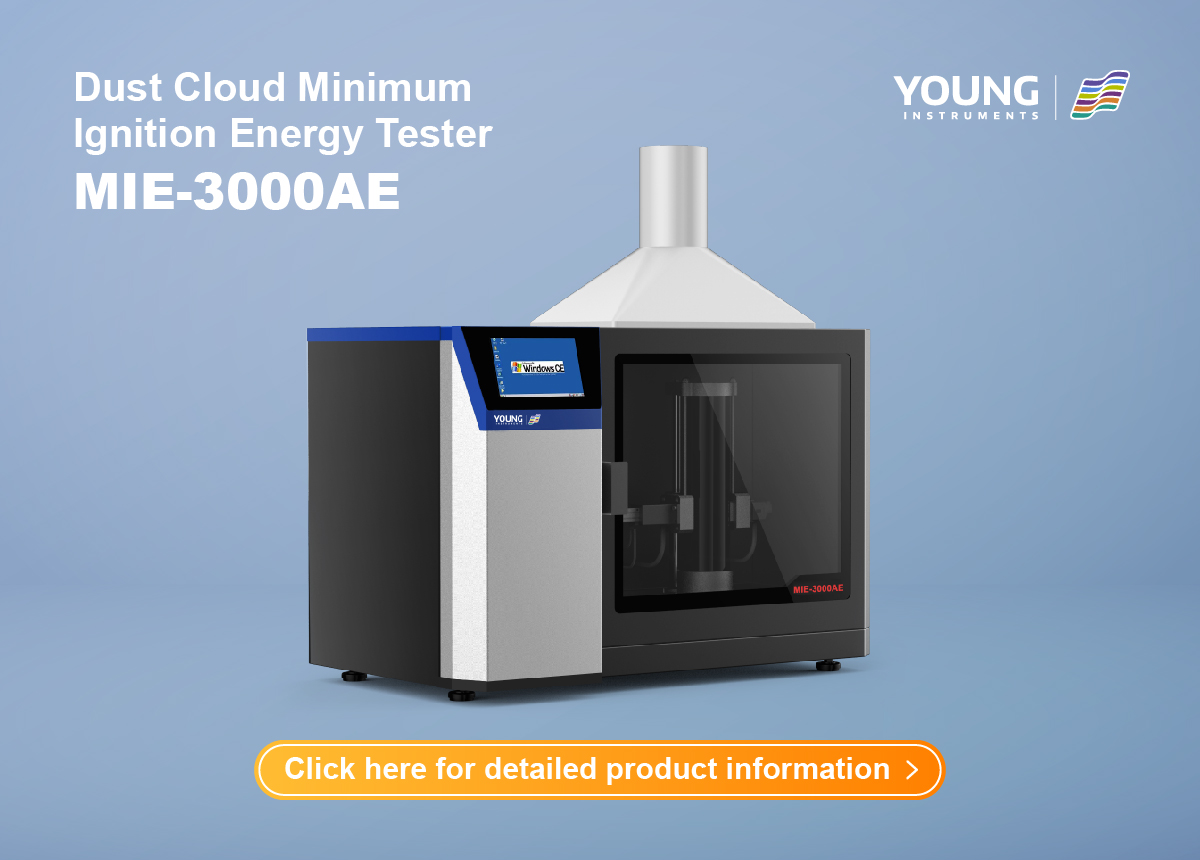

Dust Cloud Minimum Ignition Energy Tester (MIE-3000AE)
Overview and Technical Parameters
The Dust Cloud Minimum Ignition Energy (MIE) Tester is used to measure the minimum energy required to ignite a dust cloud. By dispersing dust in a controlled environment and applying a specific amount of spark energy, this instrument helps assess the ignition sensitivity of the dust.
Test Parameters: Minimum Ignition Energy
Working Environment: 5℃ to 45℃, <85% RH
Key Features:
- Spark energy adjustable from 1mJ to 3000mJ.
- High voltage safety features and automatic operation.
- Precise dust dispersion ensures accurate results.
Role in Explosion Prevention
Knowing the Minimum Ignition Energy (MIE) is essential in preventing accidental ignition of dust clouds. This data helps industries identify the necessary safety precautions, such as grounding or spark control, to reduce the chances of an explosion. The MIE-3000AE is a critical tool in assessing the risk level of dust in industrial settings.
Enhanced Safety and Usability
The MIE-3000AE provides automated control over the ignition process, including features like remote control for operator safety. Its precise adjustments for electrode distance, powder pressure, and ignition delay ensure accurate testing, while its compact design allows for easy cleaning and maintenance.

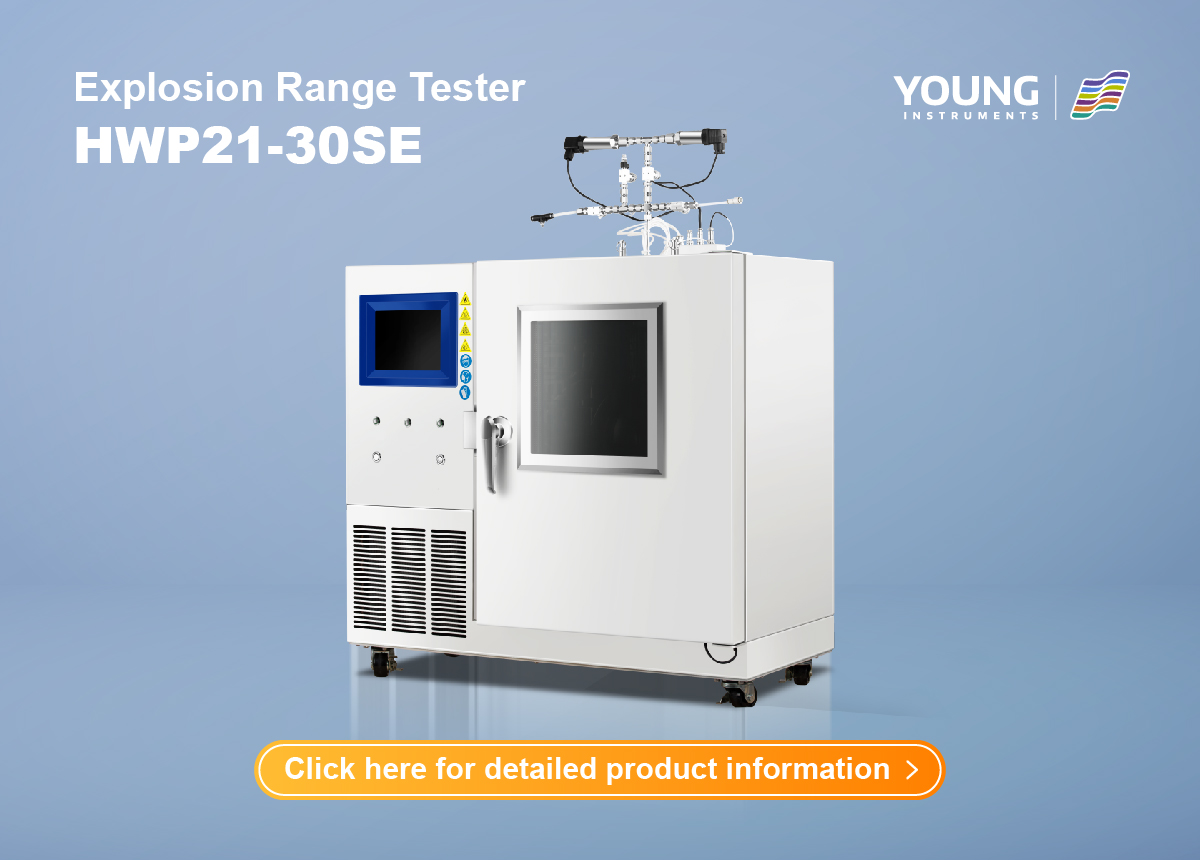

Explosion Range Tester (HWP21-30SE)
Overview and Technical Parameters
The Explosion Range Tester assesses the flammability limits of gases or vapors in air, identifying the Upper and Lower Flammability Limits (UFL/LFL). This instrument is essential in evaluating the fire and explosion risks associated with volatile compounds.
Test Parameters: Upper and Lower Flammability Limits (UFL/LFL)
Working Environment: -5°C to 45°C, <95% RH
Key Features:
- Capable of testing gases, vaporizable liquids, or solids.
- Equipped with safety features such as pressure relief systems.
- Compact design with automatic sample cleaning and real-time monitoring.
Importance in Risk Assessment
Understanding the flammability range of gases or vapors is critical in industries that handle volatile substances. The data from this tester allows for precise hazard assessments and helps in designing systems that can mitigate the risks of fires or explosions in hazardous environments.
Built-In Safety and Efficiency
Equipped with explosion-proof features and automated systems for gas mixing and cleaning, the HWP21-30SE ensures that tests are conducted safely and efficiently. Its advanced sensors monitor the pressure and temperature during the tests, providing accurate data for risk evaluations.

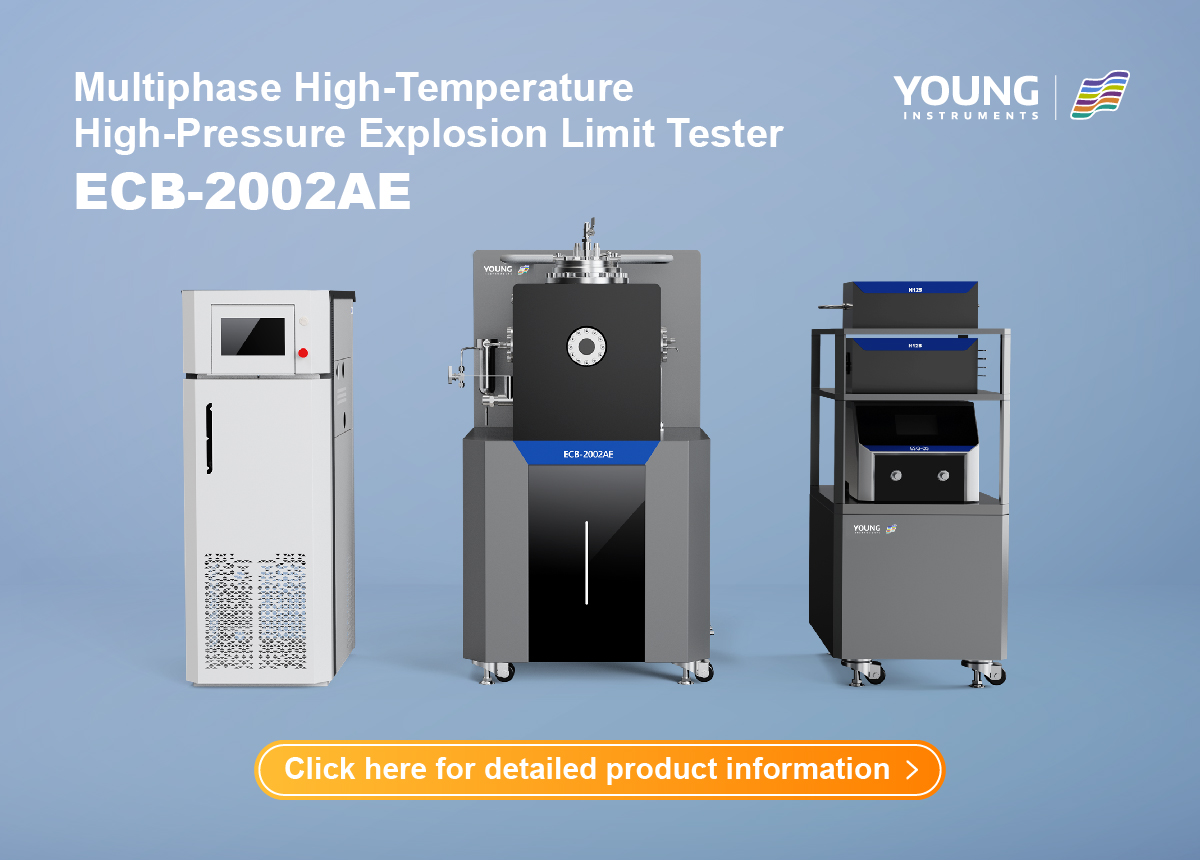

Multiphase High-Temperature High-Pressure Explosion Limit Tester (ECB-2002AE)
Overview and Technical Parameters
The Multiphase High-Temperature High-Pressure Explosion Limit Tester (ECB-2002AE) is an advanced instrument designed to evaluate the explosive characteristics of gases and dusts under extreme conditions. Developed based on standards such as ASTM E918, ASTM E2079, EN 1839, EN 15967, and UL9540A, this tester is capable of determining several critical explosion-related parameters, including explosion limits, maximum explosion pressure, rate of pressure rise, and limiting oxygen concentration (LOC). This makes it particularly valuable for industries dealing with highly reactive materials, such as lithium batteries and combustible gases.
Test Parameters: Explosion Limits, Maximum Explosion Pressure, Rate of Pressure Rise, Limiting Oxygen Concentration
Applicable Fields: Lithium Batteries, Combustible Gas
Working Environment: -5°C to 45°C, <95% RH
Test Container Design Pressure: ≥2.0MPa
Key Features:
- Explosion pressure sensor with high linearity and precision.
- Jacketed temperature control for efficient heat management.
- Modular design for flexible testing needs.
Importance in Industrial Settings
The ECB-2002AE plays a critical role in ensuring safety across industries dealing with combustible materials that require precise control over environmental factors. Lithium batteries, for example, pose a high risk of explosion when exposed to certain pressures and temperatures. By measuring explosion limits and the minimum oxygen concentration necessary for combustion, industries can develop more robust safety protocols and containment systems to prevent hazardous incidents.
This instrument is also essential for the gas industry, where the precise measurement of gas mixtures and explosion limits is crucial for fire and explosion prevention. The ability to simulate extreme conditions in a controlled environment provides invaluable data for risk assessment.
Knowledge Expansion: Determining Dust Explosivity
Understanding whether a dust is explosive is vital in many industrial environments, and various international standards provide guidelines for testing and classification. Below, we explore some widely recognized standards for determining dust explosivity.
a. German Standard VDI 2263, Part 1 (1990)
The VDI 2263 standard outlines a method for testing dust explosivity using an improved Hartmann tube with an inductive spark of 15kV. If flame propagation is observed, the dust is considered explosive. If no flame propagation is detected, further testing is conducted using a 20L spherical container with a 1-2kJ ignition energy to confirm the results.
Dust Explosion Classification
- If the compensated maximum pressure after ignition is greater than 0.5barg, the dust is classified as explosive.
- If the maximum pressure is less than 0.5barg, it is considered non-explosive.
- The standard does not specify the classification for dusts that exactly reach 0.5barg.
This standard emphasizes the importance of multiple tests to accurately determine dust explosivity, especially for borderline cases where additional testing in larger containers is required.
b. ISO/IEC 80079-20-2 (2016)
The ISO/IEC 80079-20-2 standard describes a three-step testing process:
Hartmann Tube Test: Using a 15kV inductive spark, if flame propagation is observed, the dust is considered explosive. If not, the test proceeds to the next step.
Heated Coil Test: The dust is tested with a heated coil above 1000°C. Flame propagation here also indicates explosivity.
20L Spherical Container Test: If the dust passes the first two tests, a 2kJ ignition energy is applied in a larger container to confirm explosivity.
Dust Explosion Classification
- If the compensated maximum pressure after ignition is greater than or equal to 0.3barg, the dust is explosive.
- If the pressure is less than 0.3barg, it is considered non-explosive.
This standard provides a rigorous and systematic approach to evaluating dust explosivity across different energy levels and container sizes.
c. ASTM E1226-19 (2016)
The ASTM E1226-19 standard focuses on testing dust explosivity using a 20L spherical container with an ignition energy of 5kJ or 10kJ, with a recommendation to use 10kJ for more accurate results.
Dust Explosion Classification
- If the maximum compensated pressure after ignition is greater than or equal to 1barg, the dust is classified as explosive.
- If the pressure is less than 1barg, the dust is considered non-explosive.
Unlike the previous standards, ASTM E1226-19 does not utilize the Hartmann tube for screening tests but directly employs the 20L container for more accurate assessments.
Conclusion: The Importance of Explosion Testing in Industrial Safety
In industrial settings where combustible dust and gases are present, it is critical to implement comprehensive safety measures. Understanding the maximum explosion pressure (Pmax) and other explosion-related parameters allows companies to design systems that prevent explosions or mitigate their impact. By using advanced testing instruments, such as those provided by Hangzhou Zeal Instruments Science & Technology Co., Ltd., industries can ensure the safety of their facilities and comply with regulatory standards.
These instruments not only provide valuable data but also enhance the safety of testing personnel through automation and remote control features. Whether it’s testing dust for its explosion pressure, ignition energy, or flammability range, using the right tools is the first step in safeguarding industrial operations from the devastating effects of dust explosions.
For more information on these products, please visit Hangzhou Zeal Instruments Science & Technology Co., Ltd. and explore their full range of safety testing solutions.
