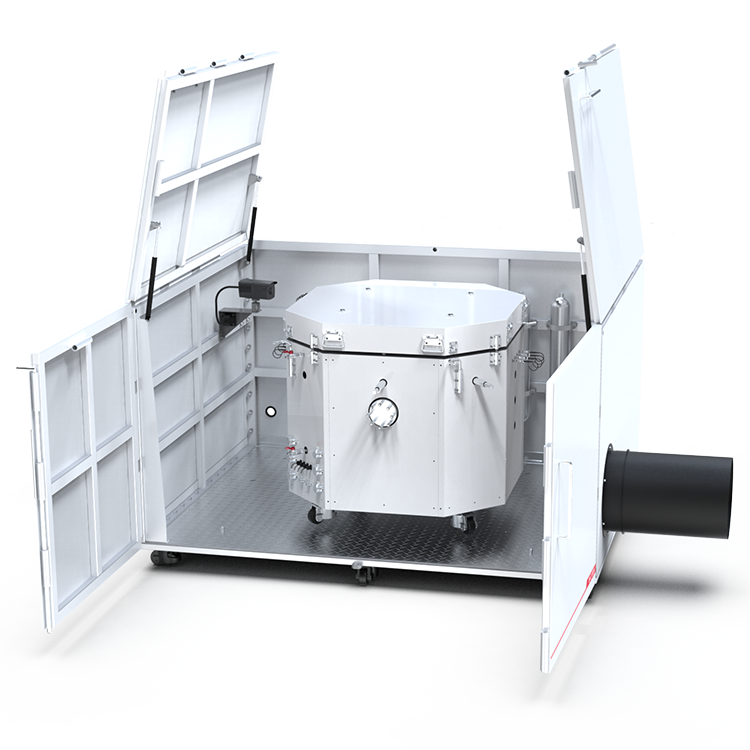

Large Battery Adiabatic Calorimeter
The BAC-800AE is designed for studying large battery cells and small modules with long sides ranging from 100mm to 900mm. It can perform tests on battery thermal runaway, gas generation, heat generation during charging and discharging, and specific heat capacity. The instrument precisely measures parameters such as heat generation and specific heat capacity under low-temperature conditions, the onset temperature of thermal runaway, the maximum rate of thermal runaway, adiabatic temperature rise characteristics, gas generation volume, and gas generation rate.
Test Parameters
Thermal Runaway Onset Temperature, Maximum Rate of Temperature Rise, Adiabatic Temperature Rise, Specific Heat Capacity, etc.
Applicable Fields
Battery Pack, Battery Cell
Keywords
Battery Cell Testing, Lithium-ion Battery Testing, Battery Performance Testing
Features
Specifications
Applications
Videos
Download
Q&A
Features
Specifications

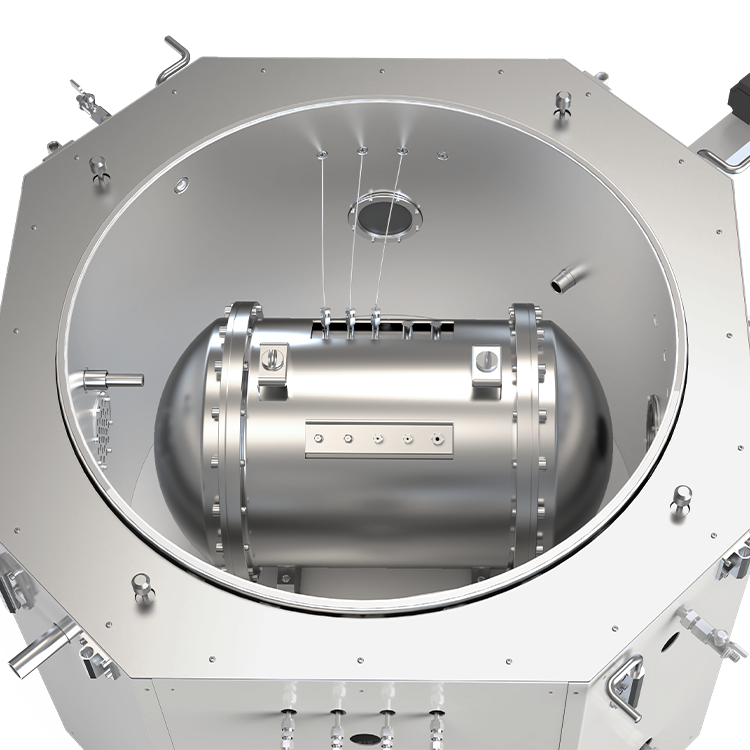

| Adiabatic Furnace Dimensions | Diameter 800mm, Depth 520mm |
| Self-exothermic Detection Sensitivity | 0.02℃/min to 0.05℃/min |
| Temperature Difference between Furnace and Sample in Constant Temperature | ≤1℃ |

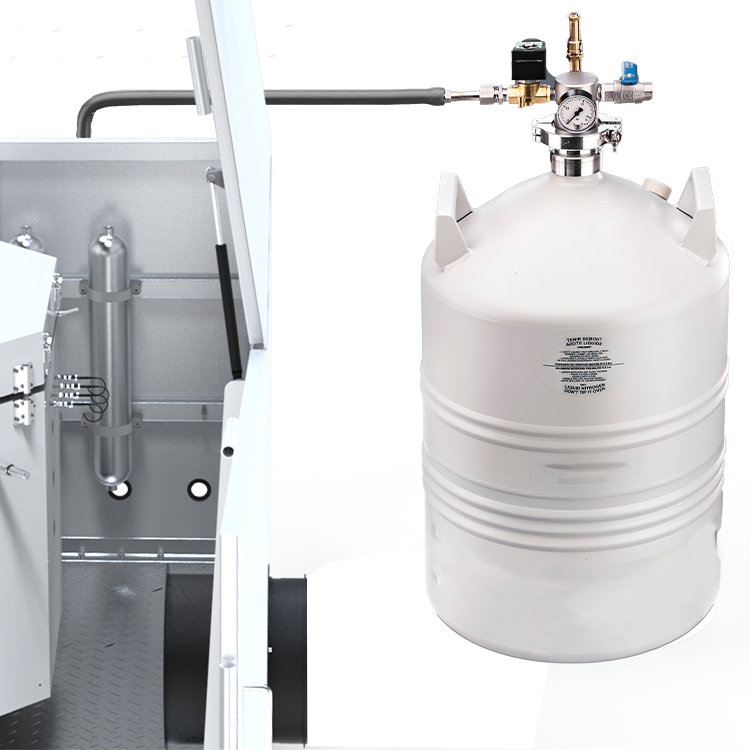

| Temperature Control Range | (RT to 300)℃, with a low-temperature module reaching -25℃ |
| Temperature Tracking Rate | 0.02℃/min to 15℃/min |
| Sealed Canister Pressure Range | 0 to 2MPa |
| Maximum Nail Penetration Stroke | Up to 200mm (via software settings) |
| Charge and Discharge Column Overcurrent Capability | -500A to 500A |
