How Specific Heat Capacity Measurement  Reveals the Secrets of Materials

2025.02.25

Imagine unlocking the hidden characteristics of a material with just a small amount of heat. This can be done through a property known as specific heat capacity (SHC). SHC refers to the amount of heat required to increase the temperature of a material, offering insights into how different materials respond to heat. It plays a key role in numerous industries, from chemical engineering to materials, where it helps predict temperature shifts. A small heat change can reveal valuable information through SHC, making it essential for a wide range of applications.

Measuring Specific Heat: The Science Behind It

Techniques to Measure SHC

SHC is measured using different methods. One common method is calorimetry. Another method is Differential Scanning Calorimetry (DSC). DSC is widely used because it’s quick and simple. It requires a small sample and gives accurate results. This method is especially useful when high precision is not necessary.

How Is SHC Tested Using DSC?

In DSC, SHC is often measured using the sapphire method. The SHC of sapphire is known and used to calculate the sample’s SHC. The DSC records the heat flow of the sample, a reference sample, and an empty container. The results are used to calculate SHC. The sample must meet some requirements. For example, the sample mass must remain stable. Testing should not exceed 200°C. The first 30°C of data should be excluded.

The Role of Heat Transfer and Temperature Change in Calculating SHC

Heat transfer and temperature change are important in calculating SHC. The amount of heat added to a material causes its temperature to rise. SHC tells us how much heat is needed to raise the temperature. By measuring this temperature change, we can calculate SHC.

How Zeal Instruments Solves the Problem

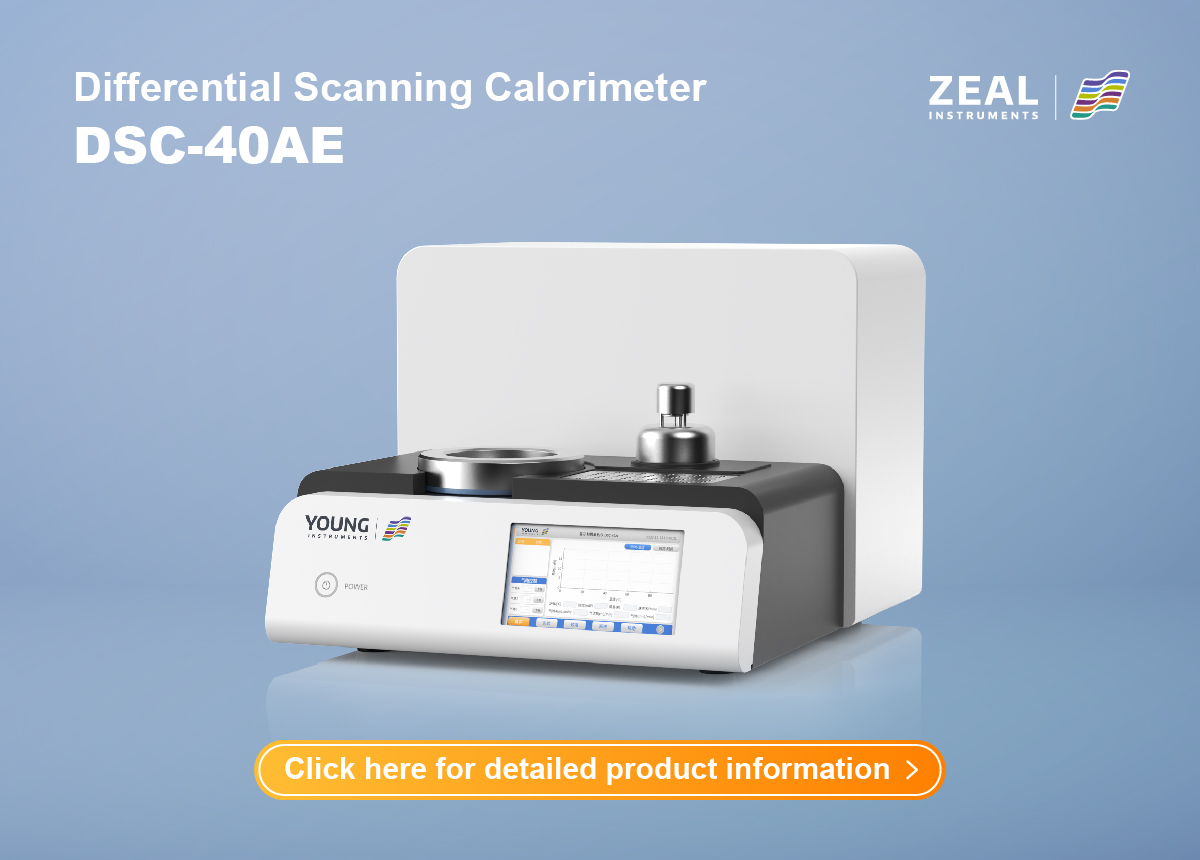

Differential Scanning Calorimeter (DSC-40AE)

The DSC-40AE is based on the tower-type heat flow method. It is a standard thermal analysis instrument. It measures the difference in heat flow per unit time between the sample and a reference sample. This measurement is taken under controlled temperature conditions. The heat flow changes with temperature or time.

Enhancements with Tower-Type Heat Flow Technology

This instrument uses tower-type heat flow technology. It improves the instrument’s resolution and sensitivity. The DSC-40AE also uses special algorithms. These algorithms control the temperature and heat flow signals precisely. This makes it easier to measure SHC and exothermic reactions accurately. The instrument has many capabilities. It can measure things like the DSC onset point, start and end set points, baseline, and heat flow peak. It also measures glass transition temperature and peak area. This can measure enthalpy of absorption and release, peak temperature, and extrapolated onset temperature. The nickel-chromium substrate improves the instrument’s resistance to high-temperature oxidation. It also enhances sensitivity and dynamic response. The device is easy to use. It comes with a high-definition touchscreen for easy operation.

Silver Furnace and Other Features

The DSC-40AE uses a silver furnace body. This improves heat transfer efficiency. It also reduces interference between the reference and the sample. The instrument has both ramp and isothermal temperature control modes. It has a data acquisition rate of 50Hz. This helps improve sensitivity and resolution. The instrument’s structural design ensures baseline stability. It also improves the signal-to-noise ratio.

Specifications

The DSC-40AE operates in an environment of 5°C to 40°C with a relative humidity of less than 85%. It has a temperature control range from room temperature to 600°C. The heating scan rate is between 0.1K/min and 200K/min. The scan rate deviation is ±1%. The phase transition temperature accuracy is ±0.1K. The reproducibility for phase transition temperature is ±0.02K. The accuracy for enthalpy is ±1%. The reproducibility for enthalpy is ±0.02K. The precision for enthalpy measurement is ±0.25%. The baseline stability is 200μW, with a baseline reproducibility of ±15μW. The heat flow display resolution is 0.1μW. The heat flow peak noise is 9μW.

Why Does It Matter?

SHC Helps Engineers and Scientists

SHC is important for engineers and scientists. It helps them understand how materials store energy. It also shows how materials manage heat. These properties are key to designing and improving materials.

Examples of Real-World Applications

  • Polymer Crystallization Behavior Analysis: The crystallization behavior of materials can affect their performance. DSC is used to study and characterize this behavior.
  • Thermal Oxidative Stability Evaluation: Oxidation Induction Time (OIT) measures how long it takes for a material to undergo self-catalyzed oxidation. This happens under specific conditions like air, oxygen, and a set temperature. DSC can measure OIT quickly. This helps select the right type and quantity of antioxidants. It also helps analyze factors that affect thermal oxidative aging. DSC can establish a relationship between OIT and testing temperature. This relationship can be used to estimate the material’s thermal oxidative aging life at specific temperatures.
  • Chemical Composition Detection: DSC can be used to compare the melting enthalpy of a sample with a reference sample. This helps estimate the chemical composition of the sample.

SHC in Developing New Materials

SHC measurements are important for developing new materials. These materials can store energy more efficiently. This can lead to the development of better energy storage solutions. It also helps create materials that are more sustainable.

Unlock Precision in Thermal Analysis with DSC-40AE

The DSC-40AE is a powerful tool for thermal analysis. It measures heat flow differences between samples. This helps with accurate results. The tower-type heat flow method boosts sensitivity and resolution. It is easy to use with a high-definition touchscreen. The silver furnace body ensures better heat transfer. It reduces interference. This instrument offers fast data acquisition, making it efficient. It’s perfect for a variety of applications. From polymer behavior analysis to chemical composition detection, it delivers reliable data. Enhance your research with the DSC-40AE. Get precise results every time.
