Up to Standard? A Guide to Thermal Insulation Materials Testing
In the realm of construction, energy efficiency is paramount. Thermal insulation materials play a pivotal role in maintaining comfortable indoor environments while minimizing energy consumption. At the heart of evaluating these materials lies thermal conductivity, often characterized by thermal resistance or thermal transmittance. Enter the Heat Flow Meter (HFM) 510A, a cutting-edge device designed by Zeal Instruments to precisely measure thermal resistance and thermal conductivity, ushering in a new era of efficiency and sustainability in construction practices.
Understanding the Core Principles of Thermal Insulation Materials Testing
1.1 The Significance of Thermal Conductivity:
Thermal conductivity stands as a hallmark of thermal insulation material performance. It distinguishes between materials with superior insulating properties and those that fall short. The lower the thermal conductivity, the better the material’s ability to resist heat transfer, thereby enhancing energy efficiency.
1.2 Introducing Heat Flow Meter (HFM) 510A:

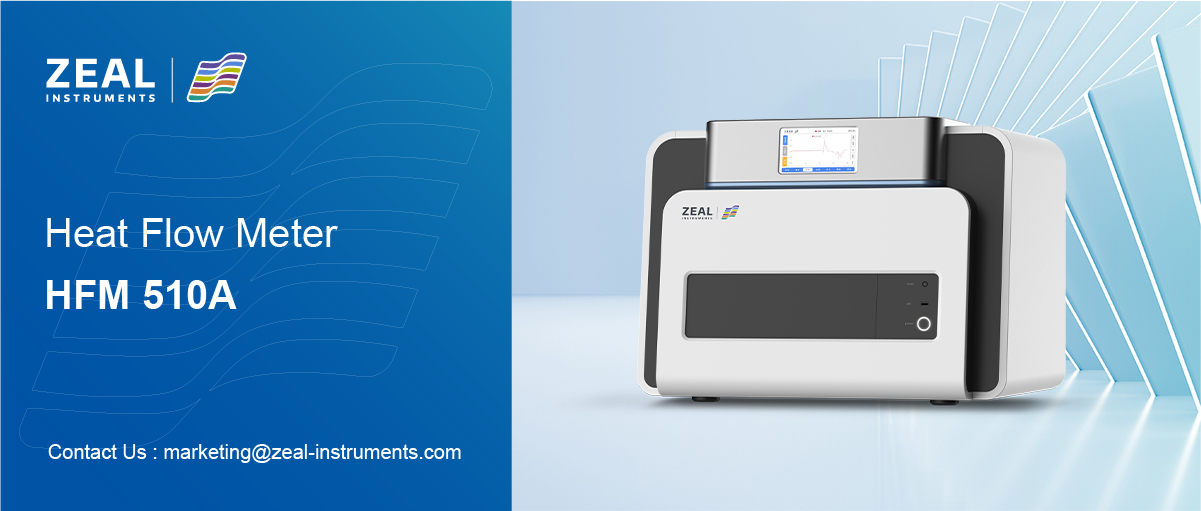

Crafted with precision and innovation, the HFM 510A embodies the pinnacle of thermal insulation materials testing technology. Engineered to comply with ASTM C518, ISO 8301, JIS A1412, DIN EN 12664, and DIN EN 12667 standards, this device offers unparalleled accuracy and reliability in measuring thermal resistance and thermal conductivity.
The Operational Mechanism of Heat Flow Meter (HFM) 510A
The HFM 510A is designed using the Heat Flow Meter Method. Its operating principle involves placing the sample between two flat plates, maintaining a constant temperature difference between them. A calibrated heat flow sensor is then used to measure the heat flow passing through the sample. Once thermal equilibrium is achieved, final data is collected. The measurement is focused solely on the central region of the sample.
The HFM 510A demonstrates minimal heat loss on both sides during testing at medium to low temperatures, making it suitable for insulation material testing. It offers shorter testing times and accommodates a wider range of sample sizes.
The test specimen is sandwiched between two heated plates, each meticulously controlled to achieve a user-defined mean sample temperature and temperature gradient.
Exploring the Cutting-Edge Features of Thermal Insulation Materials Testing HFM 510A
2.1 Automated Precision: Elevating Efficiency
At the heart of the HFM 510A lies its highly automated system, engineered for seamless operation and precise results. Automatic lifting and lowering of the heating plate, coupled with automatic load force testing and thickness measurement, streamline the testing process, minimizing manual intervention and reducing the likelihood of human error. With automatic temperature control and furnace door operation, the HFM 510A ensures consistent testing conditions, enhancing the reliability of results across various insulation materials.
2.2 Enhanced Precision: Dual Heat Flow Sensors
Precision is the hallmark of the HFM 510A, made possible by its dual heat flow sensors. This advanced feature enables rapid and efficient sample testing, providing enhanced accuracy even when dealing with materials of low thermal conductivity. Independent temperature control for the upper and lower plates further refines the testing process, ensuring optimal conditions for precise thermal conductivity measurements.
2.3 Environmental Stability: Cooling and Purging
In the quest for accurate thermal conductivity testing, environmental stability is paramount. The HFM 510A addresses this need with external oil bath cooling and nitrogen gas purging for sample drying. This ensures low environmental sensitivity, enabling reliable measurements across a wide temperature range while maintaining strong stability throughout the testing process.
2.4 Adaptive Functionality: Surface Measurement and Sample Preparation
One of the standout features of the HFM 510A is its adaptive functionality, capable of accommodating uneven sample surfaces with ease. Moreover, Zeal Instruments provides molds for particle sample preparation, minimizing sample preparation requirements and ensuring consistency in testing conditions. This adaptive approach underscores the HFM 510A’s versatility and suitability for a diverse range of insulation materials.
2.5 Flexible Experimentation: Software Integration
The HFM 510A isn’t just about hardware; its software integration elevates experimental flexibility to new heights. With thermal conductivity extension accessory modes and support for offline operation, researchers have the freedom to customize experiments according to their specific requirements. Real-time data monitoring and display, coupled with automatic test report generation, further enhance the efficiency and convenience of the testing process.
2.6 User-Centric Design: Interface and Expandability
Zeal Instruments has prioritized user experience with the HFM 510A, evident in its intuitive human-machine interface and high-definition touchscreen display. The industrial design exudes elegance, making it a pleasure to interact with during testing procedures. Furthermore, the HFM 510A boasts high peripheral expandability, featuring a built-in industrial computer that eliminates the need for external connections. This enables seamless integration with peripherals such as a mouse, keyboard, and printer, further enhancing the user experience.
2.7 Meeting Stringent Standards
Compliance with industry standards is non-negotiable in thermal insulation materials testing, and the HFM 510A exceeds expectations in this regard. Built to adhere to standards such as GB/T 10295, ASTM C518, ISO 8301, and DIN EN 12667, it ensures that test results are not only precise but also universally recognized and accepted within the industry.
Interpreting Test Results and Implications
3.1 Deciphering Thermal Transmittance:
The thermal transmittance, commonly referred to as the U-value, serves as a key metric for assessing the insulating ability of materials. Thermal conductivity is a crucial thermal physical property that not only reveals the material’s thermal conductivity but also serves as a primary parameter for evaluating its insulation effectiveness. The lower the U value, the better the insulation performance of the material.
3.2 Multi-field Application:
Generally, materials with a thermal conductivity lower than or equal to 0.23W/(m·K) are referred to as insulation materials. These include fiberglass, asbestos, rock wool, and silicate, as well as newer insulation materials such as aerogel felt and vacuum panels.
Currently, insulation materials are widely used in various fields such as construction, transportation, and firefighting to reduce heat loss or absorption and improve energy utilization efficiency.
Accurately measuring the thermal conductivity of insulation materials can help optimize their manufacturing processes and raw material proportions, thereby promoting industry development.
Thermal Insulation Materials Testing: Applications Across Industries
4.1 Construction Materials:
The HFM 510A finds extensive application in the testing of insulation materials commonly used in construction, such as expanded polystyrene (EPS), extruded polystyrene (XPS), PU rigid foam, mineral wool, and foam glass. By accurately measuring thermal conductivity, it helps optimize the thermal performance of buildings, leading to enhanced energy efficiency and comfort.
4.2 Specialized Materials:
Beyond traditional insulation materials, the HFM 510A is also adept at testing specialized materials like aerogels, phase change materials, and polymers. Its adaptive measurement capabilities and customizable testing parameters make it a versatile tool for research and development across various industries.
Conclusion: Pioneering Progress through Precision Testing
In conclusion, the Heat Flow Meter (HFM) 510A stands as a beacon of innovation in the realm of thermal insulation materials testing. With its advanced capabilities and user-friendly design, this device not only ensures the efficiency and reliability of testing processes but also catalyzes progress toward a more sustainable future. As industries continue to prioritize energy efficiency and environmental responsibility, the HFM 510A emerges as a vital tool in driving transformative change and shaping the landscape of construction practices worldwide.
