How the Vapor Pressure Apparatus Works

2025.01.30

Vapor pressure is the pressure exerted by a vapor when it is in equilibrium with its liquid or solid form. It is important in both chemistry and physics because it helps explain the behavior of liquids and gases. Vapor pressure is influenced by temperature, with higher temperatures leading to higher vapor pressure. This happens because more molecules escape the liquid into the vapor phase as the temperature increases. The Vapor Pressure Apparatus is used to measure vapor pressure accurately. It ensures that results are precise and reliable. The apparatus helps scientists understand how different substances behave under various conditions.

The Role of Saturated Vapor Pressure in Petroleum Products

What is Saturated Vapor Pressure in Petroleum Products?

The saturated vapor pressure of petroleum products is the highest pressure that the vapor exerts at the surface of the liquid when both the liquid and vapor are in balance. This balance happens in specific conditions, measured with an appropriate test apparatus. The vapor pressure is important for understanding how petroleum products behave, especially in relation to their evaporation, starting ability, and the risk of vapor lock. Vapor pressure is also used to track the loss of lighter substances during storage and transport.

The Importance of Vapor Pressure in Fuel Volatility

Vapor pressure is a key factor in determining how volatile a fuel is. When the vapor pressure is high, it means the fuel is more volatile. This typically means there are more light hydrocarbons in the fuel. These lighter hydrocarbons make it easier for the fuel to evaporate. As the vapor pressure increases, the fuel becomes more prone to evaporating quickly, which can be useful in some conditions but a disadvantage in others, like when you want to reduce fuel loss.

Vapor Pressures Effect on Fuel Performance and Storage

Saturated vapor pressure also helps to identify if engine fuels are likely to form vapor lock. Vapor lock happens when bubbles of vapor prevent the fuel from reaching the engine. Fuels with higher vapor pressures are more likely to experience this problem. Additionally, high vapor pressure can cause more fuel loss during storage and transportation. When the vapor pressure is low, the fuel is less likely to lose light components and will perform better when starting an engine. Measuring the vapor pressure of fuels is therefore important to ensure both efficient performance and minimal loss during storage.

Product Recommendation- Micro Vapor Pressure Tester

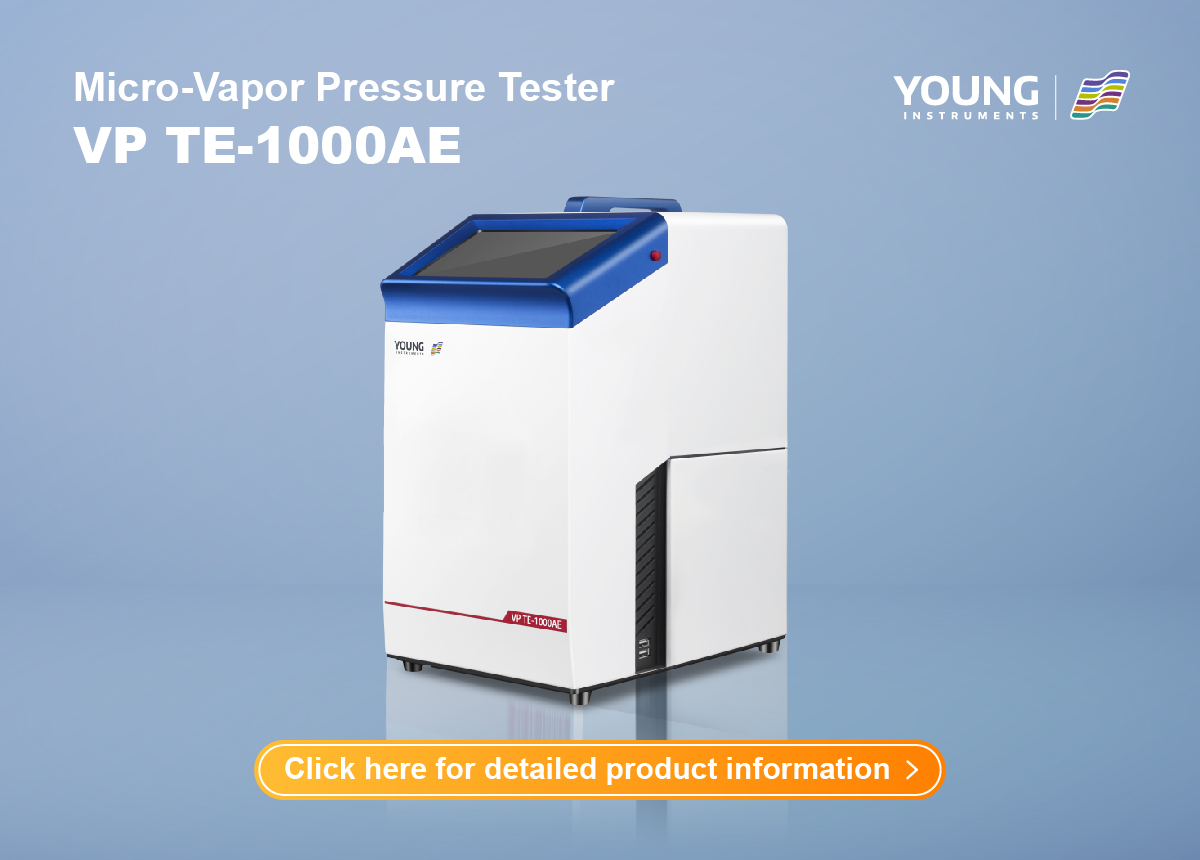

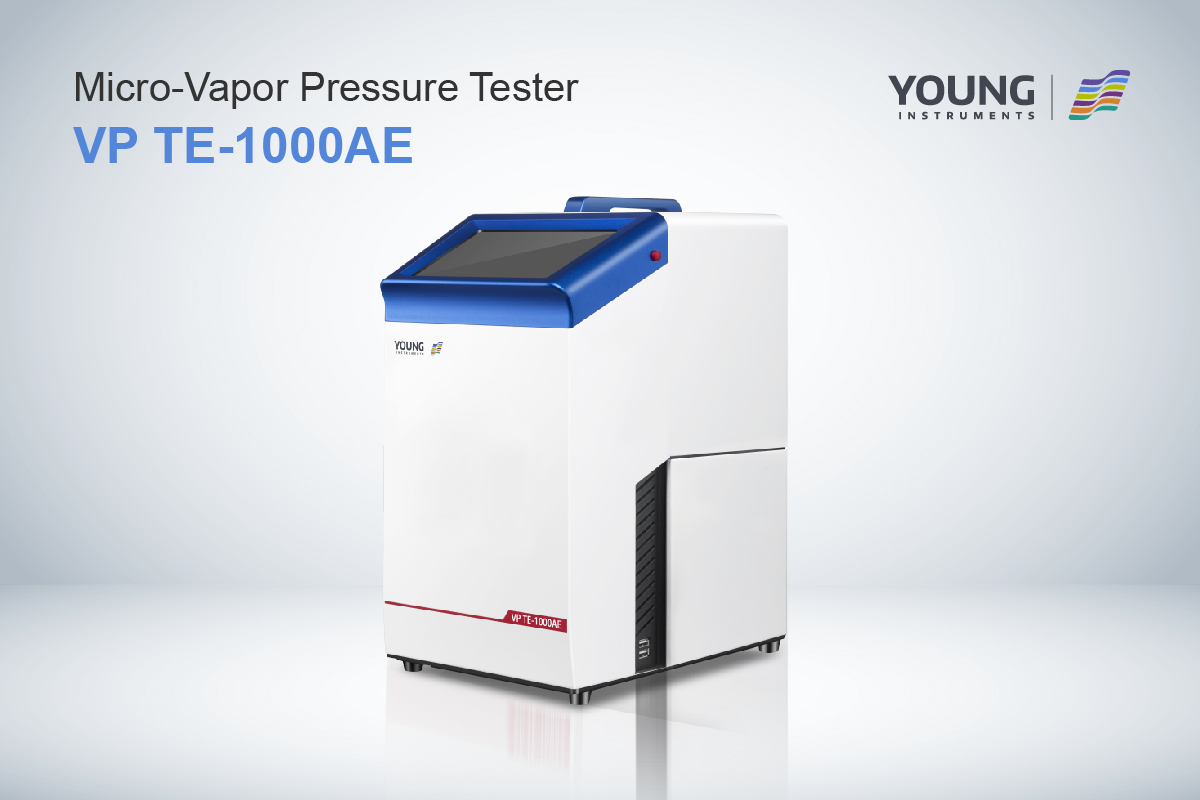

Overview of the Micro Vapor Pressure Tester

The VP TE-1000AE is a device used to measure the vapor pressure of various substances. It uses the triple expansion method, which is ideal for petroleum and chemical industries. This method provides accurate results when measuring substances like gasoline, aviation gasoline, hydrocarbon solvents, light petroleum distillates, and chemical reagents. The device is designed to be simple to use and provides reliable data quickly.

Key Features and Advantages

The VP TE-1000AE uses the advanced triple expansion method, which is well-known internationally. The device requires no sample pre-treatment. It performs all operations with just one button, making it easy for users to complete experiments. The system is fully automated, removing human error from the process. Only 1 ml of sample is needed, and results can be obtained in just 10 minutes. This makes it a fast and efficient tool for testing.

Precision and Efficiency in Testing

One of the key features of the VP TE-1000AE is its ability to detect multiple temperature points automatically. This allows for the quick creation of temperature-pressure reference charts. The system also has a unique cleaning method that helps prevent sample contamination, improving the accuracy of results. The maintenance-free measuring chamber is designed for high-intensity testing tasks, making it reliable over time.

User-Friendly Interface and Convenience

The VP TE-1000AE offers user-friendly features. It includes a 7-inch color LCD touchscreen that displays the experimental process in real-time. The system also has a USB plug-and-play interface, which makes data management easy. Additionally, there is an optional thermal printer for printing results. The device supports user hierarchical management, allowing control of accounts at different levels. This ensures easy operation, even for new users.

Application

What the Instrument Measures

The instrument can measure the vapor pressure of volatile liquid petroleum products. It also works with hydrocarbons and mixtures of hydrocarbon-oxygen compounds. It is designed for substances that have a boiling point above 0°C. Additionally, the vapor-to-liquid ratio for testing should be 4:1. The vapor pressure measured at 37.8°C can range from 7 to 150 kPa.

Sample Volume and Measurement Range

For accurate results, the sample volume required for testing is between 1 and 10 mL. This small sample size makes the instrument easy to use and efficient. It is suitable for a variety of petroleum-based substances, including gasoline and oxygenated gasoline.

Conversion to ASTM Method

The instrument is capable of converting the vapor pressure of gasoline and oxygenated gasoline into the dry vapor pressure equivalent. This is done by using the ASTM D5191 method. The conversion ensures that the results are accurate and meet international testing standards.

Research Fields

Common Usage in Various Industries

The instrument is widely used in different industries. It is common in petroleum, petrochemical, and chemical industries. Many scientific research institutions also use it. Additionally, third-party certification and inspection laboratories rely on the instrument for accurate measurements.

Volatility Control of Blended Gasoline

One important application of the instrument is in the control of volatility in blended gasoline. This gasoline often contains oxygenated compounds. The instrument helps ensure that the gasoline meets required standards.

Vapor Pressure Testing in Different Environments

The instrument is used for vapor pressure testing in various environments. It is useful in enterprise laboratories and at production sites. It can also be used in field environments to test fuels under real-world conditions.

Research on Crude Oil and Low Vapor-to-Liquid Ratios

The instrument is valuable for research on crude oil. It can test vapor pressure at very low vapor-to-liquid ratios. This is important for studying the behavior of crude oil under different conditions.

Closing Words

The VP TE-1000AE is a dependable and user-friendly instrument designed for accurate vapor pressure measurements. Ideal for industries such as petroleum, petrochemicals, and chemicals, as well as research laboratories, the VP TE-1000AE excels in tasks like monitoring gasoline volatility, testing fuels in various conditions, and analyzing crude oil at low vapor-to-liquid ratios. Its intuitive interface and automated functions make it suitable for both novice and experienced users. Combining speed, flexibility, and reliability, the VP TE-1000AE is an excellent choice for those seeking accurate vapor pressure testing.
